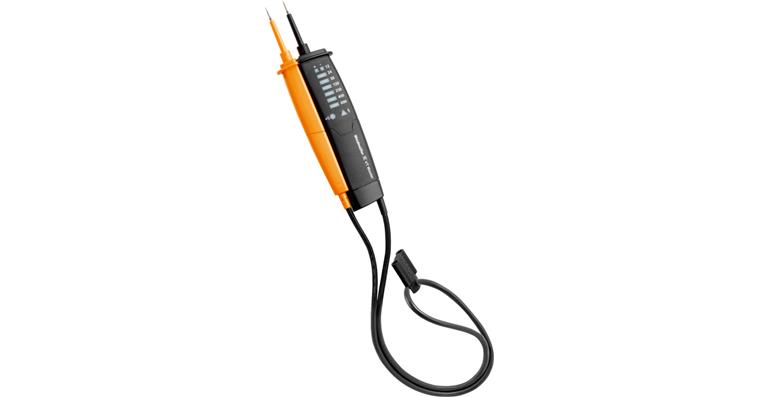

VT Master two-pole voltage tester 12-690 volts

VT Master two-pole voltage tester 12-690 volts

VT Master two-pole voltage tester 12-690 volts
Item no: 1062371 201

Online price:

Still in stock: 4

Application
For testing voltage and continuity in line with regulations

Execution
  • One-handed operation
  • LED display for voltage and polarity
  • Probe tip protection
  • Voltage display 12-690 V AC/DC
    • Visual/audible continuity test

    • Battery monitoring

    • Compact design

    • Screw-on probe extension

    • Probe tip cover to shorten the probe tip


Brand: WEIDMUELLER
Min./max. voltage range DC: 12-690 V/DC
Type: VT Master
Min./max. voltage range AC: 12-690 V/AC
Display: LED
High voltage resistance: 6 kV
Min./max. frequency: 0 / 65 Hz
Rotating field test: No
Phase sequence test: No
Polarity testing: Yes
IP protection class: IP 54
Length x width x height: 235 x 60 x 28 mm
Weight: 272 g
Overvoltage protection category: CAT IV/300 V | CAT III/600 V
EN standard: 61243-3
Height: 28 mm
Length: 235 mm
Max. frequency: 65 Hz
Min. frequency: 0 Hz
Non-contact test: No
Width: 60 mm

Manufacturer part no.: 114510

EAN no.: 4032248405763

Product Datasheet
