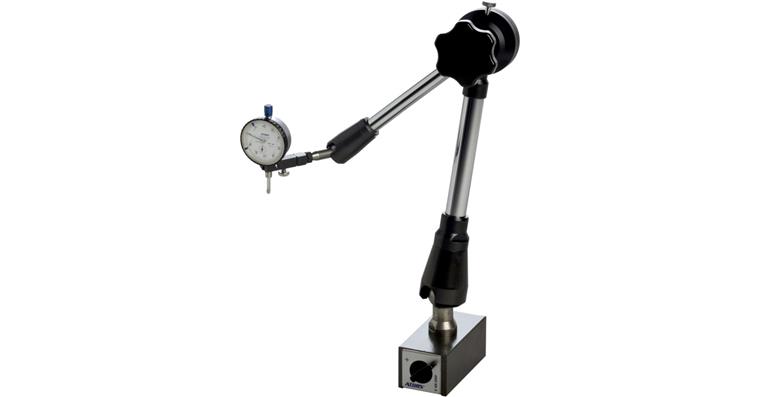

3D art. meas. stand with central clamping and micro fine adj., height 390 mm

3D art. meas. stand with central clamping and micro fine adj., height 390 mm

1034011202 3D art. meas. stand with central clamping and micro fine adj., height 390 mm
Item no: 1034011 202

Online price:

Available for immediate delivery

Application
For clamping dial gauges, precision pointers, lever gauge probes etc.

Execution
  • Mechanical, maintenance-free central clamping
  • Dovetail mount and 8-mm dia. mount (6-mm dia. possible with adapter)
  • Strong adhesive magnet with prismatic base

Advantage
  • Simple, quick operation
  • Highly flexible, exact positioning

Delivery
Without dial gauge


Brand: ATORN
Height: 390 mm
Operation radius: 288 mm
Retaining force: 29 N
Adherence strength: 750 N
Base size: 60 x 50 x 55 mm
Material: Steel

ATORN-No.: 31082300

EAN no.: 4050293353228

Product Datasheet
