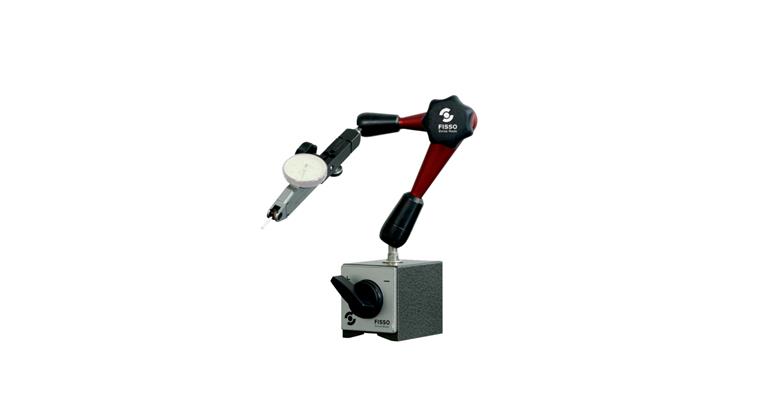

FISSO - 3D articulated measuring stand with sw. magnet approx. 800 N op. radius 200 mm

Application
For clamping dial gauges, precision pointers, lever gauge probes etc.

Execution

With switching magnet
Pre-stress prevents unwanted collapse in the loosened state to protect the measuring instruments
Maintenance-free and durable system
Short clamping path for optimum operating comfort
Powerful and durable clamping
Vorspannung verhindert unerwünschtes Zusammenfallen in gelöstem Zustand zum Schutz der Messgeräte
Precise micro-fine adjustment
- Made of steel, no play, for exact positioning of the measuring instruments as well as high measuring accuracy and repeatability
- Maximum precision ball joints made of steel
- Red anodised arm parts made of high-quality light metal
- Micro-fine adjustment made of steel
- Precisely positioned in no time at all
- Friction clamping based on a continuously variable, purely mechanical clamping system
- Articulated stand fits precisely into the ball joint for a high level of stability
Kombinierte Aufnahme für Messuhren, elektronische Messtaster mit Schaft Ø 8 mm und Fühlhebeltaster mit Schwalbenschwanz
Kugelgelenke mit größter Präzision aus Stahl gefertigt
Rot eloxierte Armteile aus hochwertigem Leichtmetall

Advantage

FISSO articulated stands can be moved easily and precisely into any desired position
Central clamping handle for securing and releasing all
3 joints
Wartungsfreies und dauerhaftes System
Präzise Mikro-Feineinstellung

Delivery
In expandable polystyrene or cardboard box, without dial gauge/lever gauge probe

Notes
For dial gauges and lever gauge probes (small probes) with dia. 8 mm shank or dovetail guide.

3D articulated measuring stand with sw. magnet approx. 800 N op. radius 200 mm

3D articulated measuring stand with sw. magnet approx. 800 N op. radius 200 mm

Description

Technical data

More details
