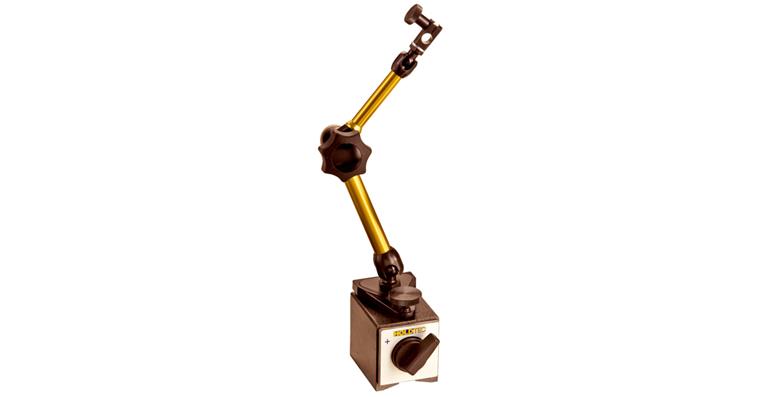

Artic. meas. stand w. fine adj. on magnet 30x40x35 mm approx. 320 N height=205mm

Artic. meas. stand w. fine adj. on magnet 30x40x35 mm approx. 320 N height=205mm

Artic. meas. stand w. fine adj. on magnet 30x40x35 mm approx. 320 N height=205mm
Item no: 1034029 101

Online price:

Still in stock: 4

Application
Ideal for use with lever gauge probes and small dial gauges.

Execution
  • Five-axis articulated measuring stand
  • Low-wear mechanical central clamping
  • Fine adjustment on the magnetic base
  • Arms made of high-strength aluminium alloy
  • With shank dia. 8 mm and dovetail guide
  • Powerful on/off magnet with prismatic base
  • Rapid clamping in any position
  • Can be adjusted quickly and easily to the desired position

Notes
For dial gauges and lever gauge probes (small probes) with dia. 8 mm shank or dovetail guide.

Brand: LIZZARD
Adherence strength: 320 N
Base size: 40 x 30 x 35 mm
Operation radius: 152 mm
Overall height: 205 mm
Base height: 35 mm
Base width: 30 mm
Foot length: 40 mm

EAN no.: 7290005390913

Product Datasheet
