New: ATORN micrometer with non-rotating spindle, measuring range 0-25 mm

New: ATORN micrometer with non-rotating spindle, measuring range 0-25 mm

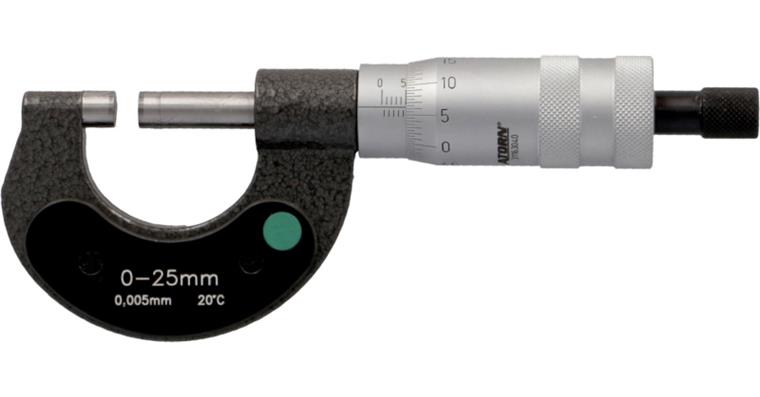

ATORN micrometer with non-rotating spindle, measuring range 0-25 mm
Item no: 1031618 101

Online price:

Will be ordered for you

Application
For measurements on scratch-prone measuring points. Also suitable for mounting adapters, e.g. thread measurement wires.

Execution
  • Anti-glare, matt chrome-plated finish on reading elements
  • Tungsten carbide measuring surfaces
  • Friction coupling for consistently repeatable measuring force of 5-10 N
  • With spindle clamp
  • Handle prevents transfer of heat from the hands
  • Non-rotating measuring spindle

Advantage
  • Extremely stable frame. Bending deflection superior to the requirements of DIN 863.
  • Very high-contrast and durable scale, sharply recessed and black

Delivery
Supplied in a high-quality wooden case


Brand: ATORN
Display: Nonius
Min./max. length measuring range: 0-25 mm
Vernier scale: 0.005 mm
Measuring arrangement: Flat
Material of measuring bolt: Carbide
Measuring surface diameter: 8 mm
Measuring spindle increments: 0,5 mm
Spindle clamping: Yes
Error limit: 3 µm
Min./max. measurement force: 5-10 N
Calibration Group: D
DIN: 863

ATORN-No.: 31163040

EAN no.: 4066107114107
