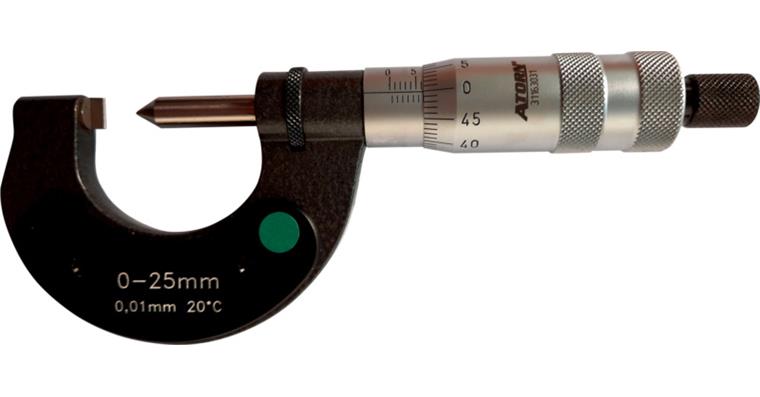

ATORN micrometer for crimp contacts, measuring range 0-25 mm
Item no: 1031615 101

Online price:

Will be ordered for you

Application
For measuring cable lugs and crimp contacts

Execution
  • Anti-glare, matt chrome-plated finish on reading elements
  • Measuring surfaces made of hardened steel
  • Friction coupling for consistently repeatable measuring force of 5-10 N
  • With spindle clamp
  • Handle prevents transfer of heat from the hands

Advantage
  • Extremely stable frame. Better bending than required by DIN 863.
  • Very high-contrast and durable scale, sharply recessed and black

Delivery
Supplied in a high-quality wooden case


Brand: ATORN
Display: Nonius
Min./max. length measuring range: 0-25 mm
Vernier scale: 0.01 mm
Measuring arrangement: Crimp contact
Material of measuring bolt: Steel
Measuring surface diameter: 6,5 mm
Measuring surface depth: 3 mm
Measuring spindle increments: 0,5 mm
Measuring surface width x Measuring surface depth: 0.7 x 3 mm
Spindle clamping: Yes
Error limit: 3 µm
Min./max. measurement force: 5-10 N
Calibration Group: D
DIN: 863

ATORN-No.: 31163031

EAN no.: 4066107114015
