ATORN SDUC offset boring bar, HSS, positive, left, AH 1216 M SDUC R/L 07

ATORN SDUC offset boring bar, HSS, positive, left, AH 1216 M SDUC R/L 07

ATORN SDUC offset boring bar, HSS, positive, left, AH 1216 M SDUC R/L 07
Item no: 1018497 299

Online price:

Available in 4-6 working days.

Application
For longitudinal and copy turning with DC indexable insert 55°.

Execution
Precision-made boring bar, HSS, with internal cooling, offset, type D, attack angle 93.5°, tip angle 55°, clearance angle 7°

Advantage
  • Narrow contour optimised for copying-turning work
  • Positive body geometry ensures low cutting forces
  • Very high rigidity and very good cut quality due to HSS base material


Brand: ATORN
ISO name: AH 1216 M SDUC R/L 07
Min. bore diameter (D min.): 19,5 mm
Shank diameter (d): 16 mm
Clearance length (l2): 36 mm
Length (l1): 150 mm
Clamping surface height (h): 15 mm
Programming size (f): 11 mm
Suitable for indexable inserts (ISO): DC.. 0702..
Tool design: Left
DIN: 8024

ATORN-No.: 11111098

EAN no.: 4050293111125

Product Datasheet
Versions
loading
Keywords:

[Text nicht gefunden]

  • Clamping screw (18470 731) for ISO indexable insert holder
  •
    ATORN SCLC offset boring bar, HSS, positive, left, AH 0608 H SCLC R/L 06
  •
    ATORN SCLC offset boring bar, HSS, positive, left, AH 0810 J SCLC R/L 06
  •
    ATORN SCLC offset boring bar, HSS, positive, left, AH 1012 J SCLC R/L 06
  •
    ATORN SCLC offset boring bar, HSS, positive, left, AH 1216 M SCLC R/L 06
  •
    ATORN SDUC offset boring bar, HSS, positive, left, AH 0810 H SDUC R/L 07
  •
    ATORN SDUC offset boring bar, HSS, positive, left, AH 1012 K SDUC R/L 07
  •
    ATORN SDQC offset boring bar, steel, positive, right, A 0810 H SDQC R/L 07
  •
    ATORN SDQC offset boring bar, steel, positive, right, A 1012 K SDQC R/L 07
  •
    ATORN SVVC boring bar, steel, positive, right, A 12K SVVC R/L 07
  •

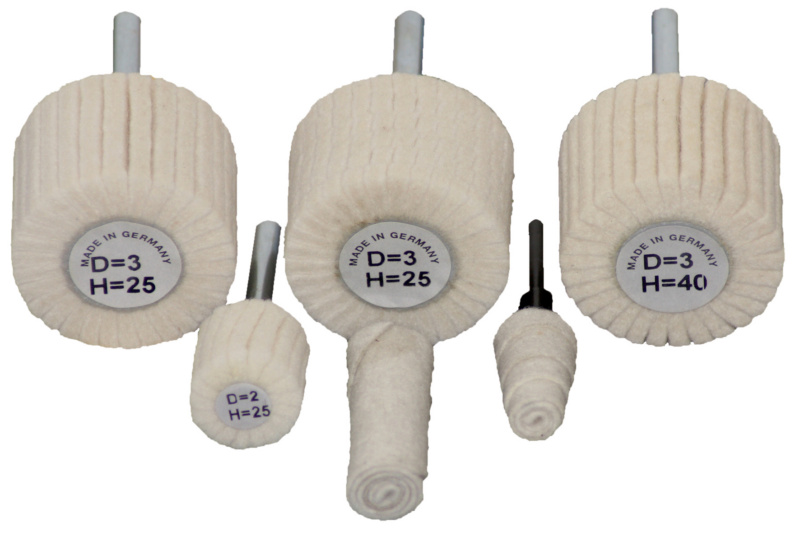

    Felt polishing set 8 pieces with shank dia. 6 mm
  •
