ATORN SCLC offset boring bar, HSS, positive, left, AH 1216 M SCLC R/L 06

ATORN SCLC offset boring bar, HSS, positive, left, AH 1216 M SCLC R/L 06

ATORN SCLC offset boring bar, HSS, positive, left, AH 1216 M SCLC R/L 06
Item no: 1018485 300

Online price:

Available in 4-6 working days.

Application

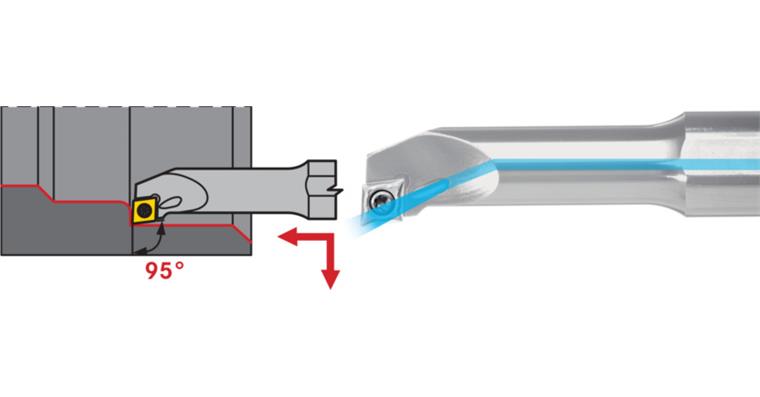

For face and longitudinal turning with CC indexable insert 80°.

Execution
precision-manufactured HSS boring bar, with inner cooling, offset, C type, 95° pitch angle, 80° tip angle, 7° clearance angle

Advantage
  • Universal use for face and longitudinal turning
  • Positive body geometry ensures low cutting forces
  • Very high rigidity and very good cut quality due to HSS base material


Brand: ATORN
ISO name: AH 1216 M SCLC R/L 06
Min. bore diameter (D min.): 18 mm
Tapered diameter (d1): 12 mm
Shank diameter (d): 16 mm
Clearance length (l2): 50 mm
Length (l1): 150 mm
Clamping surface height (h): 15 mm
Programming size (f): 9 mm
Suitable for indexable inserts (ISO): CC.. 06..
Tool design: Left
DIN: 8024

ATORN-No.: 11111096

EAN no.: 4050293111101

Product Datasheet
