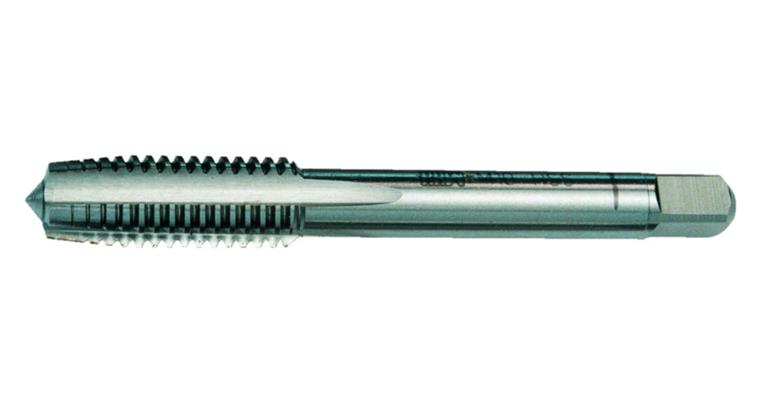

Hand tap DIN 352 no. 1 taper tap HSS polished M5

Hand tap DIN 352 no. 1 taper tap HSS polished M5

Hand tap DIN 352 no. 1 taper tap HSS polished M5
Item no: 1014026 114

Online price:

Available for immediate delivery

Application
For production of standard ISO DIN 13 metric threads. For unalloyed and low-alloy steels up to 800 N/mm² strength.

Execution
  • Taper tap with chamfer shape A with one ring
  • Right-cutting
  • Straight-grooved
  • HSS, ground


Brand: LIZZARD
Thread type x nominal diameter: M5
Pitch: 0,8 mm
Core hole diameter: 4,20 mm
Length: 50 mm
Shank diameter: 6 mm
Shank square: 4,9 mm
Colour ring system: Steels
Design: Taper tap
Shank style: Cylindrical with square drive
Thread type: Metric thread
Lead angle shape: A
DIN: 352
Cutting material: HSS
Cutting direction: Right-hand cutting
Hole type: Clearance/blind hole ≤ 2.5xD
Surface: Uncoated
Tolerance of screw taps: 6H
Nominal diameter: 5 mm
Twist angle: 0°

EAN no.: 4024496017478

Product Datasheet
Versions
loading
Keywords:

[Text nicht gefunden]

  • Hand tap DIN 352 F third tap HSS-E M5
  •
    Hand tap DIN 352 no. 1 taper tap HSS polished M4
  •
    ATORN indexable insert SEER1203AF-SN-HC4620
  •
    High-performance lathe blank, square DIN 4964 B HSS-1.3207 4x4x80 mm
  •
    Thread limit plug gauge MultiCheck with scale reading accuracy 0.5 mm M12 6H
    478,80 €
  • Counting scale CXB 30K2 battery and mains reading 2 g weighing range max. 30 kg
  •
    PROFIPOL®+ two-pole voltage and continuity tester 12-690 V AC/DC
  •

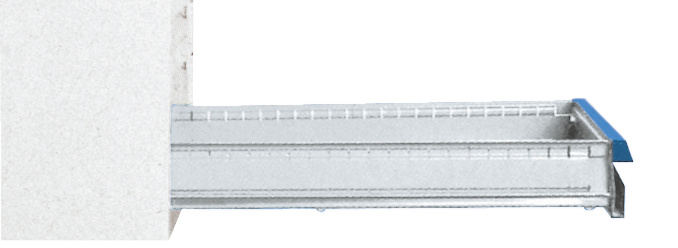

    Drawer WxD 450x600mm full-exten. sl. 100 % 100kg front height 300mm RAL7035/5010
  •

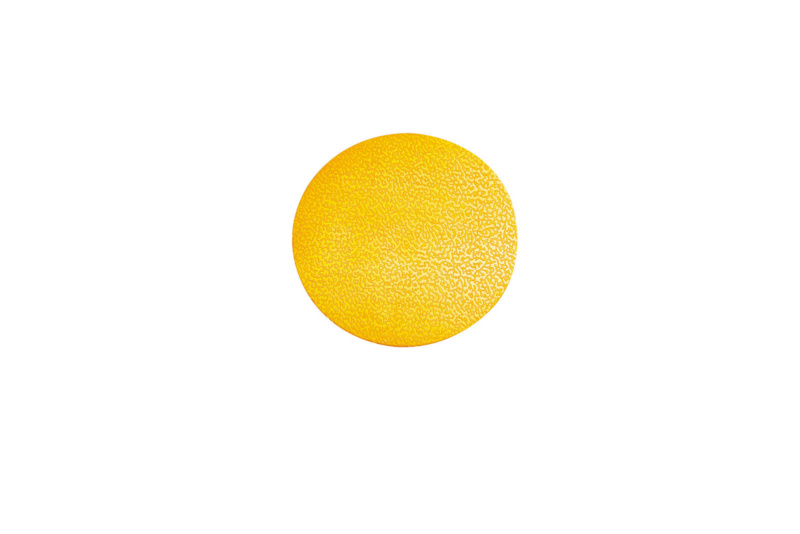

    Parking space marking spot-shape yellow self-adhesive pack=10 pieces dia. 100 mm
  •

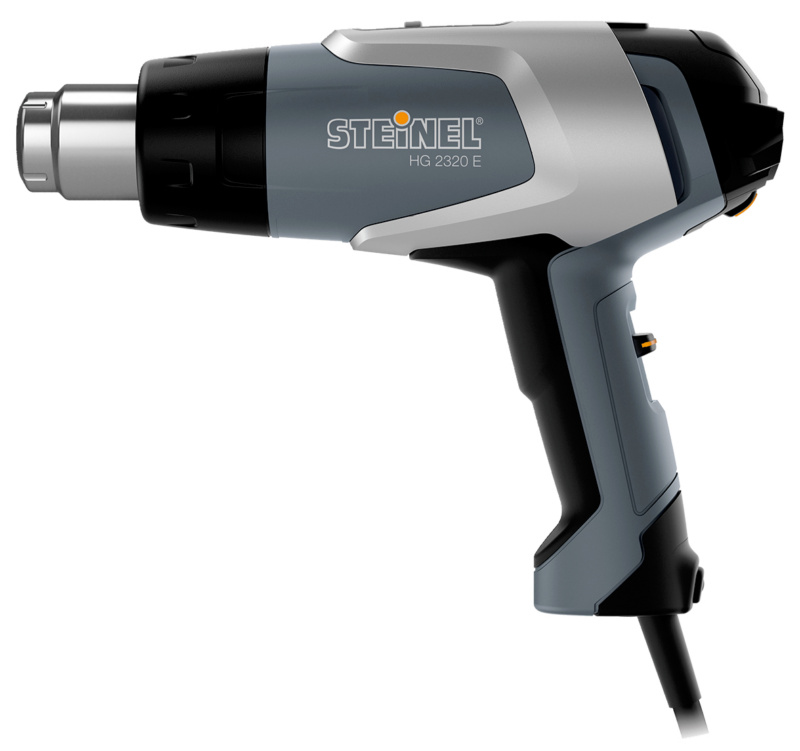

    HG 2320 E hot air blower 2,300 watts 80-650 °C 230 volts
  •
    HG 2320 ESD hot air blower
  •

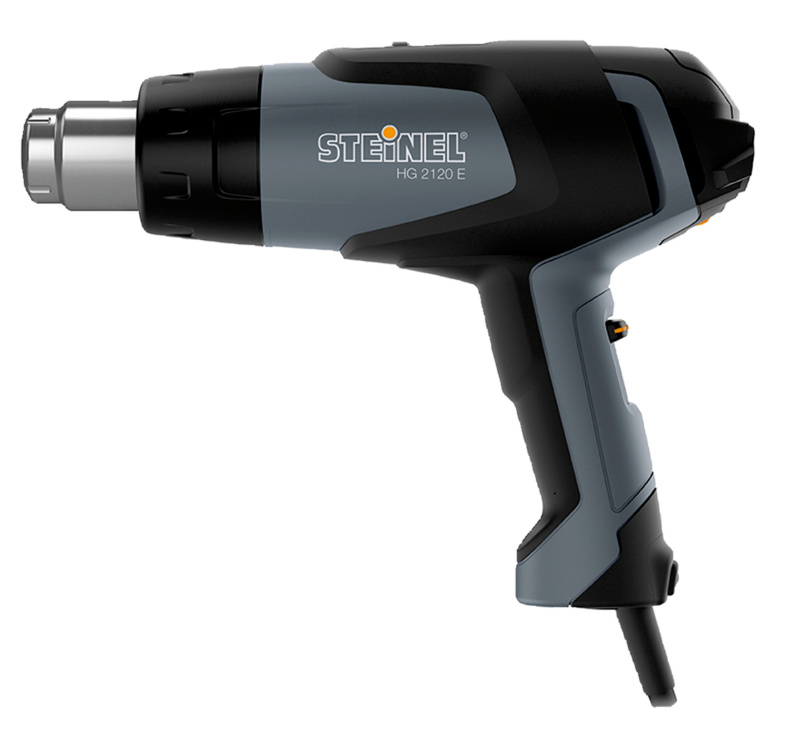

    HG 2120 E hot air blower 2,200 watts 80-630 °C 220-230 volts
