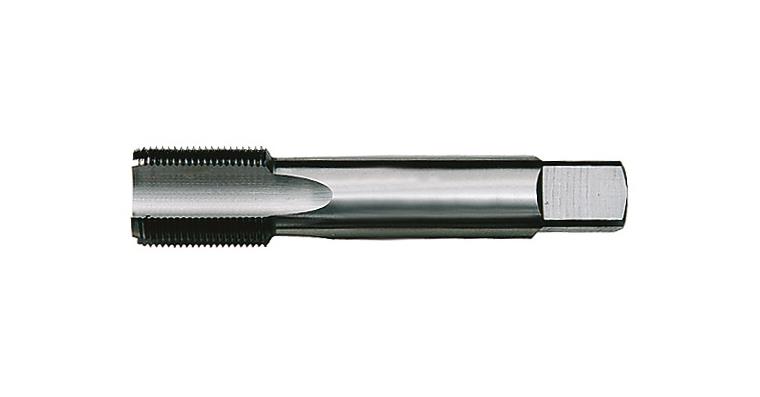

Hand tap DIN 2181 F third tap HSS MF 3x0.35

Hand tap DIN 2181 F third tap HSS MF 3x0.35

Hand tap DIN 2181 F third tap HSS MF 3x0.35
Item no: 1014054 102

Online price:

Available in 8-10 working days.

Application
For production of standard ISO DIN 13 metric threads. For unalloyed and low-alloy steels up to 800 N/mm² strength.

Execution
  • Third tap with chamfer shape C without ring
  • Right-cutting
  • Straight-grooved
  • HSS, ground


Brand: LIZZARD
Thread type x nominal diameter: MF3
Pitch: 0,35 mm
Core hole diameter: 2,65 mm
Length: 40 mm
Shank diameter: 3,5 mm
Shank square: 2,7 mm
Colour ring system: Steels
Design: Third tap
Shank style: Cylindrical with square drive
Thread type: Metric fine thread
Lead angle shape: C
DIN: 2181
Cutting material: HSS
Cutting direction: Right-hand cutting
Hole type: Clearance/blind hole ≤ 2.5xD
Surface: Uncoated
Tolerance of screw taps: 6H
Nominal diameter: 3 mm
Twist angle: 0°

EAN no.: 4024496018567
