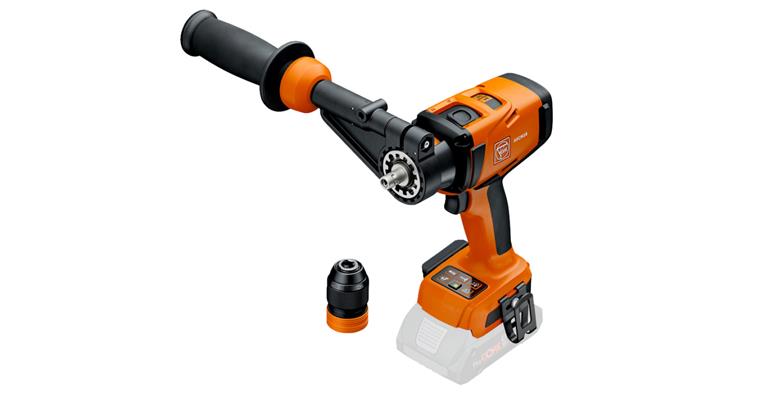

FEIN - 4-Gang Akku-Schlagbohrschrauber ASCM 18-4 QMP AS

Application
Mit bürstenlosem Motor und QuickIN Schnittstelle. Kompromisslose Leistung für Gewindebohren bis M14 und Bohren mit HM-Lochsägen bis 80 mm.

Execution

Four-speed solid metal gearbox
With speeds up to 4,000 rpm for optimum cutting speeds in metal for any hole from 1.5 to 80 mm
The greatest variety of applications with the FEIN QuickIN system for multifunctional use in drilling, core drilling, screw tapping, countersinking and screwdriving
Very safe operation
Kickback monitoring stops the power tool
Quickly switch QuickIN attachments for metal and wood applications in a single power tool, without the need for tools
Switchable hammer mechanism for drilling in stone and masonry up to 13 mm
More control due to an extendable additional handle
The brushless, powerful FEIN PowerDrive motor with up to 30 % higher efficiency enables a longer service life
High torques of up to max. 130 Nm

Advantage

Kompatibel mit Bosch Professional 18 V Akkus seit 2008 und AMPShare Akkus.
Maximaler Arbeitsfortschritt mit AMPShare 18 V ProCORE Akkus: COOLPACK 2.0-Technologie sorgt für eine um 135 % längere Akkulebensdauer. Modernste Zelltechnologie und intelligentes Akku-Management sorgen für 87 % mehr Leistung als bei konventionellen Akkus. „Electronic Cell Protection" ECP schützt den Akku vor Überlastung, Überhitzung und Tiefentladung.

Delivery
Akku-Schlagbohrschrauber
QuickIN Bohrfutter (120 Nm)
Gürtel-Clip
Bitgarage
Teleskop-Handgriff
Kunststoff-Werkzeugkoffer (L-BOXX 136)

Brand: FEIN
Max. torque: 70 Nm
Max. impact rate: 60000 rpm
Torque levels: 15+1
Tool holding device: QuickIN
Battery included in delivery: No
Battery voltage: 18 V
Max. idle speed: 4000 rpm
Motor design: Brushless motor
Max. drilling diameter in steel: 13 mm
Max. thread-cutting performance: M12
Weight: 1,4 kg
Min./max. drill chuck span width: 1.5-13 mm
Screw diameter x screw length: 10 x 400 mm
With restart protection: Yes
With disc brake: Yes
With overload protection: Yes
Max. torque hard/soft: 70 / 50 Nm
Sound-pressure level: 75,9 dB
Noise level: 83,9 dB
Max. drilling diameter in stone in 2nd gear: 13 mm
Max. drilling diameter in wood: 60 mm
Idle speed 1st gear min./max.: 0-430 U/min(rpm)
Idle speed 2nd gear min./max.: 0-850 U/min(rpm)
Idle speed 3rd gear min./max.: 0-2000 U/min(rpm)
Idle speed 4th gear min./max.: 0-4000 U/min(rpm)
Min./max. idle impact rate 1st gear: 0-6450 U/min(rpm)
Min./max. idle impact rate 2nd gear: 0-12750 U/min(rpm)
Type: ASCM 18-4 QM AS
