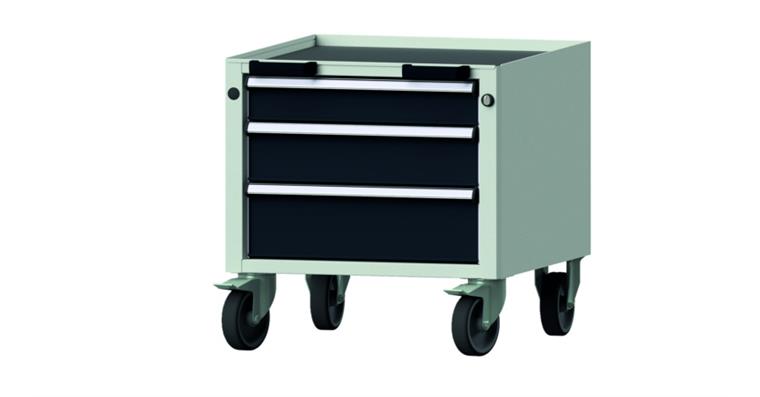

Rolling container model 18 V WxDxH 570x615x575 mm RAL 7035/7016

Rolling container model 18 V WxDxH 570x615x575 mm RAL 7035/7016

Rolling container model 18 V WxDxH 570x615x575 mm RAL 7035/7016
Item no: 1082252 602

Online price:

Availability on demand

Execution
  • Housing in robust welded sheet steel construction
  • Useful height of housing 360 mm (= clear internal dimension)
  • 2 fixed castors, 2 swivel castors with locking device, dia. 125 mm, load per castor 200 kg
  • Drawers as standard with 100 % full-extension slide, single extension lock
  • Drawer internal dimensions W x D 500 x 540 mm
  • Drawer load capacity 100 kg
  • High-quality aluminium handle strip with labelling strips
  • Central locking: DOM interchangeable cylinder
  • Lock is master-key-compatible
  • Powder-coated surface

Advantage
  • Maximum possible load including tare weight 600 kg
  • When creating locking systems, the standard locking core can simply be replaced with a locking-system-compatible locking core

Delivery
With practical deposit tray as standard (4-sided anti-roll-off edging) and non-slip mat

Notes
To order customised hard foam inserts, please use the following clear internal dimensions: W x D 490 mm x 530 mm. Specified load values always apply to evenly distributed surface loads. Other colours available on request at extra cost.

Brand: ANKE
Width: 570 mm
Number of drawers: 3 PCS
Depth: 615 mm
Height: 575 mm
Drawer front height: 1 x 90 mm | 1 x 120 mm | 1 x 150 mm
Pullout type: Full extension
Number of loading surfaces: 1 PCS
Drawer width (inner dimension): 500 mm
Drawer depth (inner dimension): 540 mm
Load-carrying capacity per drawer: 100 kg
With single pull-out safety brake: Yes
Central locking: Yes
Lock type: DOM® cylinder lock
With sliding handle: Yes
Number of fixed rollers: 2 PCS
Number of steering rollers: 2 PCS
Number of wheel adjusters: 2 PCS
Material of wheel: TPE
Wheel diameter: 125 mm
Material: Sheet steel
Cabinet colour: Light grey RAL 7035
Colour of front: Anthracite grey RAL 7016
Surface: Powder-coated
Max. load-carrying capacity: 600 kg
Width x height x depth: 570 x 575 x 615 mm

Manufacturer part no.: 999.101.0030

EAN no.: 4014641209148

Product Datasheet
