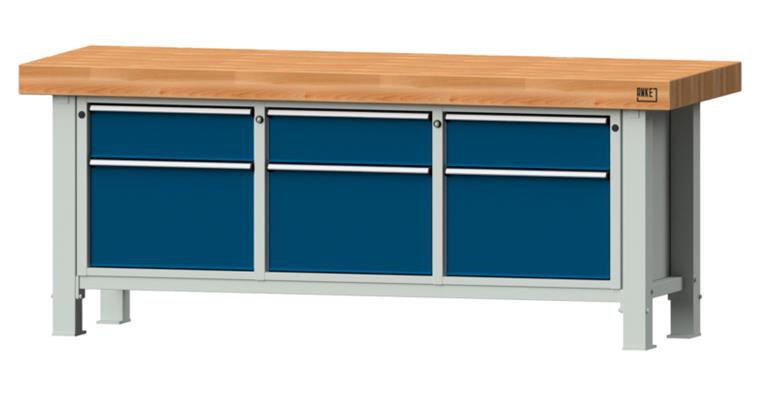

Heavy-duty workbench 2250x800x900mm model 223VS beech solid plate RAL 7035/5010

Heavy-duty workbench 2250x800x900mm model 223VS beech solid plate RAL 7035/5010

Heavy-duty workbench 2250x800x900mm model 223VS beech solid plate RAL 7035/5010
Item no: 1082084 502

Online price:

Availability on demand

Execution
  • Housing in robust welded sheet steel construction
  • Useful height of housing 540 mm (= clear internal dimension)
  • Base frame made of square steel tube 80 x 80 x 3 mm
  • Welded floor-attachment lugs
  • High-quality aluminium handle strip with labelling tabs
  • Central locking: DOM interchangeable cylinder
  • Lock is master-key-compatible
  • When creating locking systems, the standard locking core can simply be replaced with a locking-system-compatible locking core
  • Other colours available on request for a surcharge
  • TÜV/GS tested

Advantage
  • Worktop in solid beech (BMP): Panel thickness 100 mm, oiled surface, can be repeatedly sanded down for extremely long service life, robust and highly resilient thanks to special and unique strip bonding: Strips interlocked and bonded lengthways with approximately 60 % greater glue surface to ensure optimum cross-bracing and load values
  • Total workbench load 4200 kg with evenly distributed surface load

Delivery
Anlieferung fertig montiert

Notes
To order customised hard foam inserts, please use the following clear internal dimensions: WxD 490 mmx530 mm. Load values always apply to evenly distributed surface loads.

Brand: ANKE
Material of worktop: Solid beech
Load-carrying capacity: 4200 kg
Working height: 900 mm
Plate width: 2250 mm
Plate depth: 800 mm
Plate thickness: 100 mm
Number of drawers: 6 PCS
Drawer front height: 3 x 180 mm | 3 x 360 mm
Drawer width (inner dimension): 500 mm
Drawer depth (inner dimension): 540 mm
Load-carrying capacity per drawer: 100 kg
Pullout type: Full extension
With single pull-out safety brake: Yes
Lock type: DOM® locking system
Central locking: Yes
Levelling: No
Cabinet colour: Light grey RAL 7035
Colour of front: Gentian blue RAL 5010
Surface: Powder-coated

Manufacturer part no.: 223VS

EAN no.: 4014641015787

Product Datasheet
