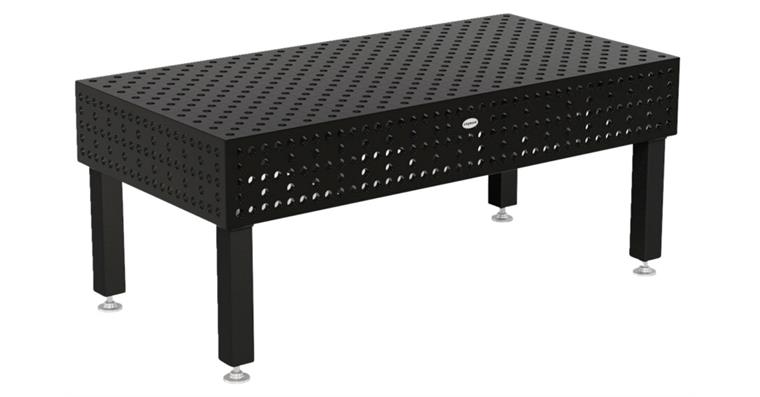

Schweißtisch Professional Extreme 2000x1000x300 mm Systemlochung 28 mm

Schweißtisch Professional Extreme 2000x1000x300 mm Systemlochung 28 mm

Schweißtisch Professional Extreme 2000x1000x300 mm Systemlochung 28 mm
Item no: 1082019 101

Online price:

Available in 8-10 working days.

Application
Professional Extreme PLUS with extra high side panels for particularly demanding applications

Execution
  • The high side panels and ribbing improve the table top stiffness and reduce its deformation under load
  • Surface bores 50x50 mm grid
  • Rounded corners, edges and bores
  • Side panel bores three rows with 25 mm spacing, two rows with 50 mm spacing
  • Table top material: Hardened X8.8 tool steel, plasma nitrided and BAR coated
  • Table top bore diameter 28.15 mm
  • Table top bore clearance 100 mm
  • Table top material thickness 24.5-27 mm
  • Table top base hardness approx. 360-420 Vickers
  • Table top surface hardness approx. 500-900 Vickers

Advantage
  • Grid lines enable accurate assembly
  • Scale on the surface
  • Design reinforced with ribs

Notes
The side walls are not subject to significant load and are therefore constructed from S355J2+N steel for cost reasons

Brand: SCHWEIßKRAFT
Plate width: 2000 mm
Plate depth: 1000 mm
Load-carrying capacity: 2000 kg
Height: 850 mm
Adjustable in height: No

Manufacturer part no.: 190280020XD8PL

EAN no.: 4036351327950

Product Datasheet
