Drawer cabinet, mobile, 5 drawers HxWxD 975x555x736 RAL 7035/5010

Drawer cabinet, mobile, 5 drawers HxWxD 975x555x736 RAL 7035/5010

Drawer cabinet, mobile, 5 drawers HxWxD 975x555x736 RAL 7035/5010
Item no: 1081742 201

Online price:

Availability on demand

Execution
  • Work and assembly trolley
  • 5 ball-bearing-mounted drawers
  • Drawers with 100 % full-extension slide
  • Drawers with a panel height of 50 mm and load capacity of 70 kg
  • Drawers with a panel height from 75 mm and load capacity of 100 kg
  • Aluminium handle strips with labelling strips
  • Central locking with individual drawer extension lock
  • Drawers are doubly secure due to individual locking
  • Plastic sliding handle
  • 2 swivel castors with locking device, 2 fixed castors, dia. 125 mm

Advantage
The mobile workplace for use anywhere

Notes
Other colours available on request. For ribbed rubber support, see art. no. 1084376 101. For fitting assortments, see art. no. 1084310 103-105.

Brand: BEDRUNKA HIRTH
Number of drawers: 5 PCS
Cabinet colour: Light grey RAL 7035
Colour of front: Gentian blue RAL 5010
Height x width x depth: 975 x 555 x 736 mm

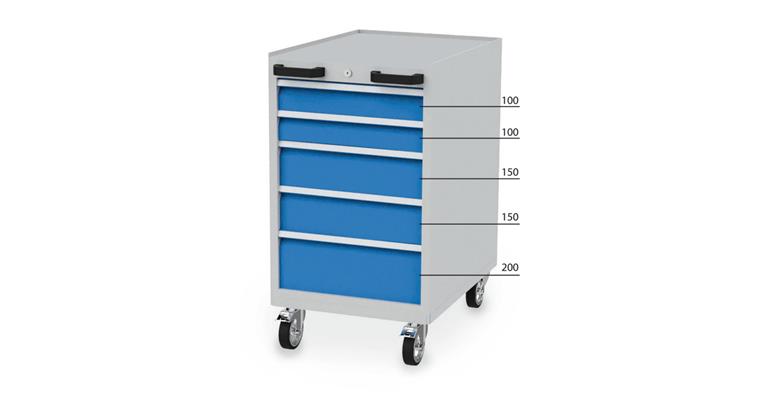

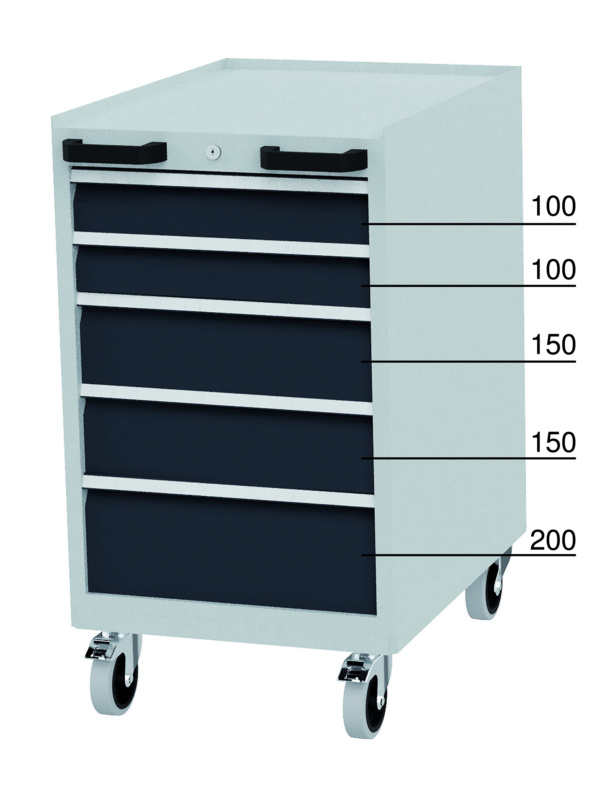

Drawer front height: 2 x 150 mm | 1 x 200 mm | 2 x 100 mm
Load-carrying capacity per drawer: 100 kg
Drawer depth (inner dimension): 600 mm
Drawer width (inner dimension): 450 mm
Pullout type: Full extension
With single pull-out safety brake: Yes
With single-locking drawers: Yes
With SOFT-CLOSE closing function: No
Central locking: Yes
Lock type: Cylinder lock
With edge protection: No
With sliding handle: Yes
Number of fixed rollers: 2 PCS
Number of steering rollers: 2 PCS
With wheel lock: Yes
Material of wheel: Rubber
Wheel diameter: 125 mm
Material of worktop: Steel plate
Material: Sheet steel
Surface: Powder-coated

Manufacturer part no.: 04.10.05V10B 7035/5010

EAN no.: 4024496114153
