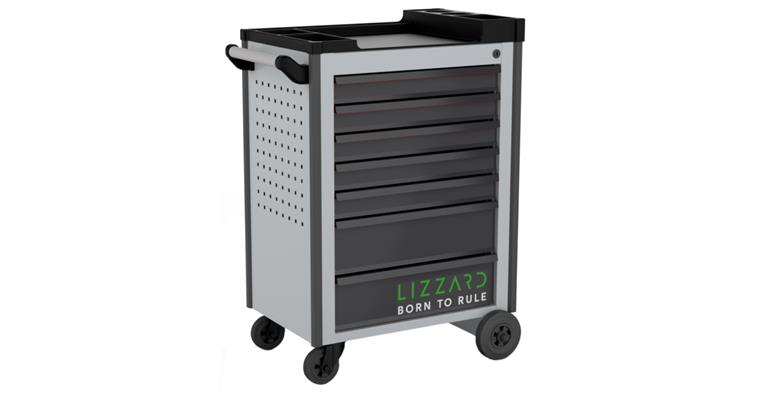

Workshop trolley 7 drawers HxWxD 925 x 645 x 425 mm, RAL7035/7016

Workshop trolley 7 drawers HxWxD 925 x 645 x 425 mm, RAL7035/7016

Workshop trolley 7 drawers HxWxD 925 x 645 x 425 mm, RAL7035/7016
Item no: 1081734 103

Online price:

Availability on demand

Execution
  • Tilt-proof due to individual drawer extension lock
  • Sturdy sheet steel construction with ABS plastic worktop and integrated small part trays
  • Rubberised edge protection profiles on the corners protect the trolley against damage
  • Individual attachment options thanks to rectangular hole grid 10 x 10 mm, spacing between hole centres 38 mm on the side walls which can be used e.g. with hooks for tools or other add-on parts (can holder, waste basket etc.)
  • Ergonomic handle made of aluminium
  • Drawer with 100 % full-extension slide
  • Individual drawer lock integrated into drawer front panel
  • Central locking with cylinder lock incl. two hinged keys
  • 2x large ball-bearing-mounted wheels, dia. 140 mm, 2x swivel castors, dia. 100 mm, including one with locking brake

Advantage
Reciprocal drawer lock, which means that only one drawer can be opened reducing the risk of the trolley tipping

Notes
When ordering customised hard foam inserts suitable for these drawers, please use the following clear internal dimensions: Width 468 mm, depth 333 mm.

Brand: LIZZARD
Number of drawers: 7 PCS
Cabinet colour: Light grey RAL 7035
Colour of front: Anthracite grey RAL 7016
Height x width x depth: 925 x 645 x 425 mm
Drawer front height: 5 x 65 mm | 2 x 140 mm
Load-carrying capacity per drawer: 25 kg
Drawer depth (inner dimension): 345 mm
Drawer width (inner dimension): 475 mm
Pullout type: Full extension
With single pull-out safety brake: Yes
With single-locking drawers: Yes
With SOFT-CLOSE closing function: No
Load-carrying capacity: 300 kg
Central locking: Yes
Lock type: Cylinder lock
Punched-hole: 10 x 10 mm
With edge protection: No
With sliding handle: Yes
Number of fixed rollers: 2 PCS
Number of steering rollers: 2 PCS
With wheel lock: Yes
Material of wheel: Solid rubber
Wheel diameter: 140/100 mm
Material of worktop: Plastic
Material: Sheet steel
Surface: Powder-coated

EAN no.: 4024496132881
