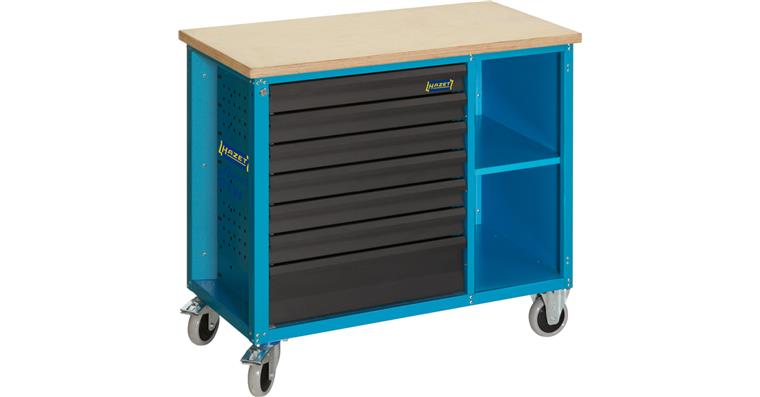

Wheeled workbench 7 drawers 934x1040x520 mm

Wheeled workbench 7 drawers 934x1040x520 mm

Wheeled workbench 7 drawers 934x1040x520 mm
Item no: 1081713 102

Online price:

Availability on demand

Application
The mobile workstation with versatile applications.

Execution
  • Robust sheet steel design
  • 2-stage locking concept:
    Central locking with cylinder lock, lockable with 2 articulated wrenches
    Individual locking of drawers, integrated in drawer panel, prevents accidental opening
  • Individual fastening options due to a perforated rectangular grid on the sidewalls which can be used e.g. with hooks for tools or other fixtures (can holder, paper roll holder, waste basket etc.)
  • 2 storage areas in shelf unit, load capacity above 15 kg, below 35 kg, shelf height-adjustable

Notes
To order customised hard foam inserts suitable for these drawers, please use the following clear internal dimensions: Width 519 mm, depth 345 mm.

Brand: HAZET
Number of drawers: 7 PCS
Drawer width (inner dimension): 527 mm
Load-carrying capacity per drawer: 20 kg
Drawer front height: 6 x 80 mm | 1 x 165 mm
Pullout type: Full extension
Drawer depth (inner dimension): 348 mm
Model: 177 W-7
Working height: 934 mm
Plate length: 1040 mm
Plate depth: 520 mm
Material of worktop: Multiplex birch
Plate thickness: 30 mm
With single pull-out safety brake: No
With single-locking drawers: Yes
On castors: Yes
Moving device, can be lowered: No
Punched-hole, sidewall: Yes
Punched-hole: 10 x 10 mm
With sliding handle: No
Load-carrying capacity: 750 kg
Dynamic load-carrying capacity: 500 kg
Number of fixed rollers: 2 PCS
Number of steering rollers: 2 PCS
With wheel lock: Yes
Material of wheel: Polyurethane
Wheel diameter: 125 mm
Central locking: Yes
Lock type: Cylinder lock
Material: Sheet steel
Cabinet colour: Blue
Colour of front: Black
Surface: Powder-coated

Manufacturer part no.: 4000896155644

EAN no.: 4000896155644
