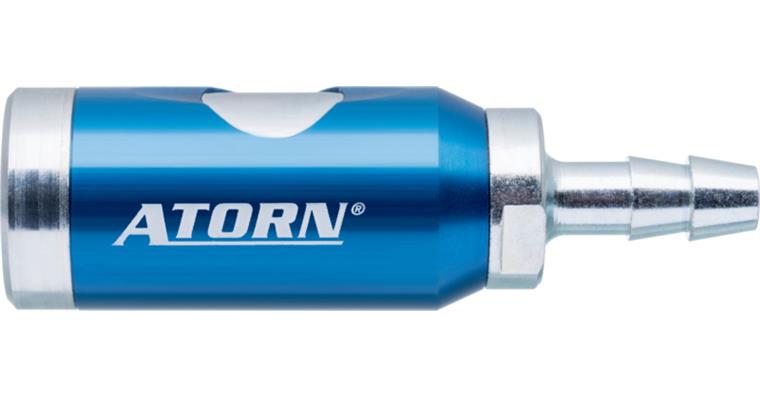

ATORN safety coupling with button, LW6 hose connection, rotating

ATORN safety coupling with button, LW6 hose connection, rotating

1075122101 ATORN safety coupling with button, LW6 hose connection, rotating
Item no: 1075122 101

Online price:

Only while stocks last: 13

Application
For connecting hoses to pneumatic tools and pneumatic machines with push-button actuation.

Execution
  • Material: - Zinc-plated steel connection piece - Housing: Anodised aluminium - Plug: Hardened and zinc-plated steel - Seals: NBR - Spring/balls: Stainless steel
  • silicone-free
  • REACH and RoHs compliant
  • Level 1: By pressing the push-button once, the coupling is bled while the plug remains secured in the sleeve.
  • Level 2: If the push-button is pressed a second time, the plug is unlocked and can be removed hazard-free.

Advantage
  • Particularly characterised by strength and compatibility
  • High flow values with DN 7.4
  • Reliably prevents whiplash effect when decoupling and provides increased safety in the workplace


Brand: ATORN
Type: hose connection
DN nominal width: DN 7,4
Inner hose diameter: 6 mm
Flow capacity: 1800 l/min
Max. operating pressure: 16 bar
Min. operating pressure: 1 bar
Length: 86,5 mm
Width across flats: 19 mm
Min./max. temperature resistance: -20 to +100 °C

ATORN-No.: 90547017

EAN no.: 4050293433104
