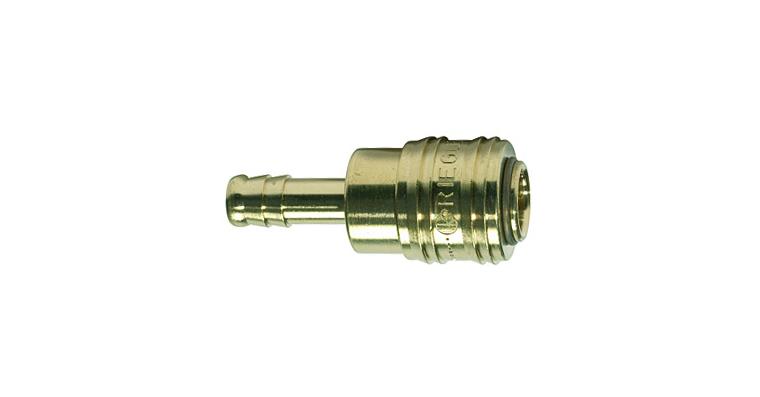

Quick-action coupling nominal width 7.2 mm connection LW 8

Quick-action coupling nominal width 7.2 mm connection LW 8

Quick-action coupling nominal width 7.2 mm connection LW 8
Item no: 1075119 205

Online price:

Available in 5-7 working days.

Execution
  • Universal one-handed quick-action coupling with single-sided locking at an extremely attractive price.
  • The closed locking sleeve prevents contamination of internal parts.
  • When using steel nipples, this coupling can also be used on pneumatic tools due to its hardened locking pins.
  • Couplings and nipples with sealing thread coating
  • Ready-to-fit polyacrylate thread coating for instant and high-level sealing without curing. The permanently elastic sealing material can be readjusted up to 45° without affecting the seal. Safe for health. Easy assembly and disassembly.
  • To avoid injuries or whipping, we recommend holding the plug-in nipple firmly with one hand when uncoupling.

Notes
This quick-action coupling is not suitable for direct mounting on pulsating tools.

Brand: RIEGLER
Type: 243.47-E
DN nominal width: DN 7,2
Connection: LW 8
Max. operating pressure: 35 bar
Min. operating pressure: 0 bar
Length: 54 mm
Max. operating temperature: 100 °C

Manufacturer part no.: 115652

EAN no.: 4047322330367

Product Datasheet
