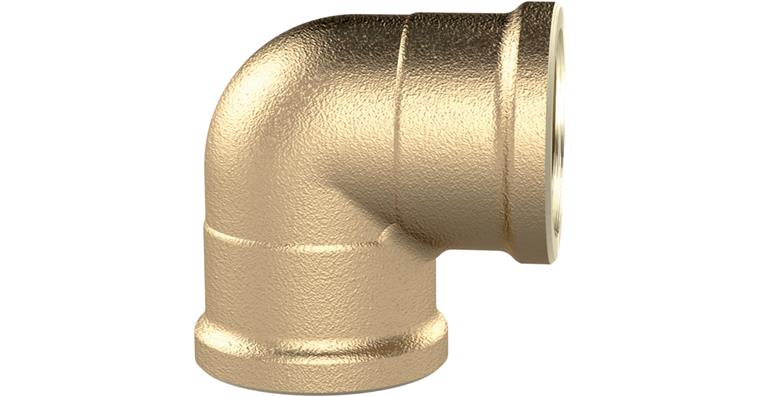

Elbow WST10MS90II 90° female/female G 1 16 bar brass plain

Elbow WST10MS90II 90° female/female G 1 16 bar brass plain

Elbow WST10MS90II 90° female/female G 1 16 bar brass plain
Item no: 1075106 606

Online price:

Available in 5-7 working days.

Application
Connecting piece for pneumatic lines 90°


Brand: RIEGLER
Connection thread: G 1 inch
Length: 34,5 mm
Length 2: 34,5 mm
Max. operating pressure: 16 bar
Type: WST10MS90II

Manufacturer part no.: WST10MS90II

EAN no.: 4047322681865

Product Datasheet
