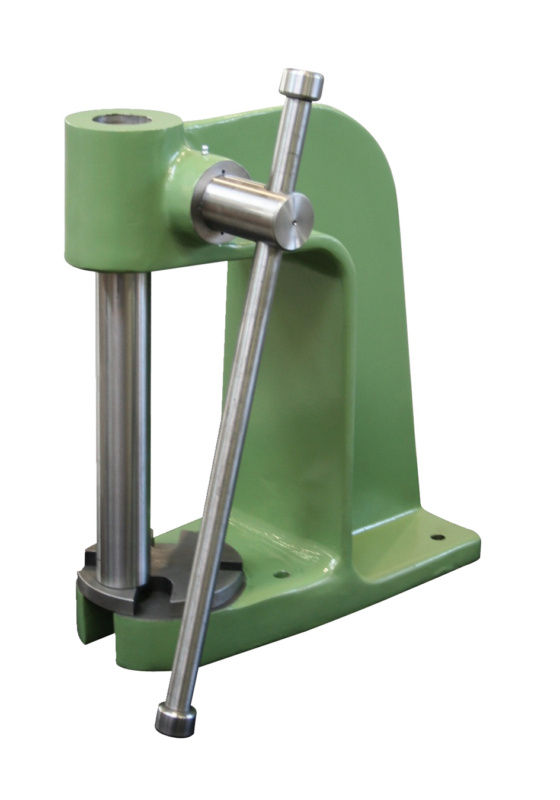

Arbour press DP 500 to 5 kN with hand lever leverage i 1:14

Arbour press DP 500 to 5 kN with hand lever leverage i 1:14

Arbour press DP 500 to 5 kN with hand lever leverage i 1:14
Item no: 1072005 201

Online price:

Available in 6-8 working days.

Application
For pressing in/out bushings, arbours, bearings, bolts, pins etc.

Execution
  • Consisting of a rigid grey cast-iron T-profile
  • The press ram is toothed and is controlled via a pinion using a hand lever
  • Rotating slotted disc (removable) with four recesses, for bolts of different diameters
  • Colour: Textured paint in green, similar to RAL 6011

Notes
Arbour presses with base frame available on request.

Brand: AGEO
Throat depth to centre of spindle: 95 mm
Pusher rod diameter: 32 mm
Compressive force: 5 kN
Weight: 16 kg
Max. installation height: 150 mm
Type: DP 500

Manufacturer part no.: DP500

EAN no.: 4024496106981

Product Datasheet
