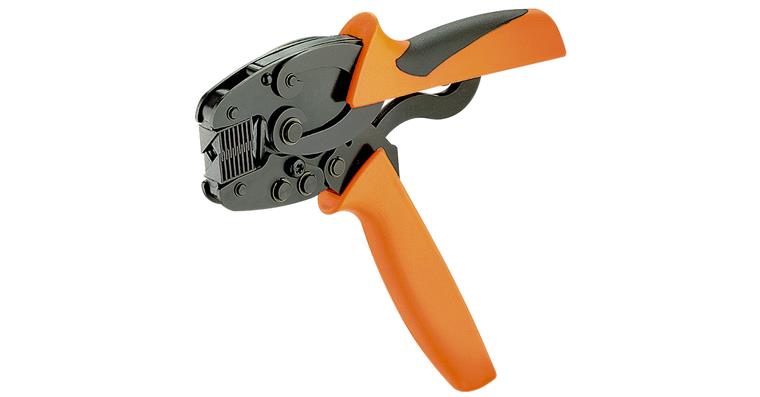

Crimping pl. PZ 3 forced lock f. wire end ferrules DIN 46228 T1+4 dia. 0.5-6 mm

Crimping pl. PZ 3 forced lock f. wire end ferrules DIN 46228 T1+4 dia. 0.5-6 mm

Crimping pl. PZ 3 forced lock f. wire end ferrules DIN 46228 T1+4 dia. 0.5-6 mm
Item no: 1062147 101

Online price:

Still in stock: 7

Application
For crimping wire end ferrules with or without plastic collars.

Execution
  • Conductors inserted from the front
  • Only one die required for the entire range
  • Short lever travel

Advantage
Force stop function guarantees high-quality crimping, unlocking option in the event of incorrect operation


Brand: WEIDMUELLER
Type (Pressform): PZ 3
Length: 200 mm
Suitable for min./max. diameter: 0.5-6 mm
Connector type: Wire end ferrules
Material of handle: 2-component plastic

Manufacturer part no.: 480771

EAN no.: 4008190052423

Product Datasheet
