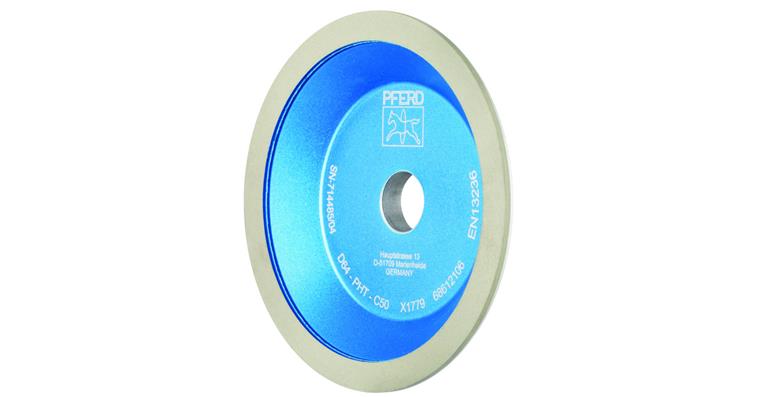

Diamond cup grinding disc 12A2/45°, grit D64, PHT, dia. 125 mm

Diamond cup grinding disc 12A2/45°, grit D64, PHT, dia. 125 mm

Diamond cup grinding disc 12A2/45°, grit D64, PHT, dia. 125 mm
Item no: 1044502 114

Online price:

Available in 6-8 working days.

Application
Mainly for grinding (sharpening) of carbide tools on all common grinding machines.
Universally suitable for dry and wet grinding (wet grinding is generally recommended).

Execution
  • Synthetic resin bond
  • Grit D64: For fine-grinding
  • Grit D126: For finishing
  • Bonding PHT: Specially designed for high-performance dry grinding, i.e. low-temperature grinding even without coolant


Brand: PFERD
Material of abrasive medium: Diamond
Form: 12A2
Washer diameter (Scheibendurchmesser D): 125 mm
Bore diameter (Bohrungsdurchmesser H): 20 mm
Washer thickness (Scheibendicke T): 25 mm
Grid size: Fine
Wall thickness (Wanddicke U): 10 mm
Lining thickness (Belagstärke X): 2 mm
Min./max. recommended peripheral surface speed for dry sanding: 15-20 m/s
Min./max. recommended peripheral surface speed for wet sanding: 20-30 m/s
Binding: Synthetic resin
Grain size: 64 µm
Max. recommended peripheral surface speed for dry sanding: 20 m/s
Max. recommended peripheral surface speed for wet sanding: 30 m/s
Min. recommended peripheral surface speed for dry sanding: 15 m/s
Min. recommended peripheral surface speed for wet sanding: 20 m/s
Number of pieces per packet: 1 PCS

Manufacturer part no.: 12A2/45° 125-10-2-20 D 64 PHT C50

EAN no.: 4007220168677

Product Datasheet
