Rotationslaser LAR 160 G 4-teiliges Set mit Receiver, Zielplatte und Koffer

Rotationslaser LAR 160 G 4-teiliges Set mit Receiver, Zielplatte und Koffer

Rotationslaser LAR 160 G 4-teiliges Set mit Receiver, Zielplatte und Koffer
Item no: 1038112 101

Online price:

Available in 6-8 working days.

Application
For a variety of applications in dry lining, e.g. layout work, installing suspended ceilings, installing partition walls, transferring heights etc.

Execution
  • Fully automatic, motorised rotary laser level - highly accurate levelling ± 0.1 mm/m, fast self-levelling within 20 seconds
  • STABILA GREENBEAM technology for better visibility of the rotating laser beam: green laser beams are four times more visible to the human eye than red beams
  • Four laser functions for a variety of applications - horizontal and vertical rotation, perpendicular line feature and right angles (90°) in vertical operation
  • Shock-absorbing STABILA soft-grip casing protects against impact - the laser optics are also protected by the robust top housing
  • Three buttons for simple operation: on/off, tilt mode, manual mode
  • Large working range with set receiver REC 160 RG: up to 600 m diameter
  • Two 5/8-in threads integrated in housing

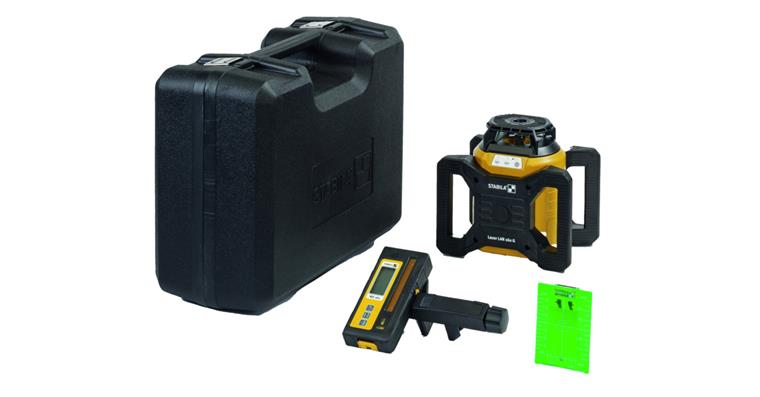

Delivery
1x LAR 160 G rotary laser level
1x REC 160 RG receiver
1x target plate
1x carrying case
Batteries (2 x D, 2 x AA)


Brand: STABILA
Levelling measuring accuracy (+/- per length): 0,1 mm/m
Type: LAR 160 G Set
Self-levelling range (+/-): 5 Degree
Coverage distance: 600 mm
Laser category: 2
IP protection class: IP 65
Min./max. working range: 0-600 m
With tripod socket: Yes
Max. working range: 600 m
Min. working range: 0 m
Thread dimension: 5/8 inch - 11UNC

Manufacturer part no.: 19240

EAN no.: 4005069192402

Product Datasheet
