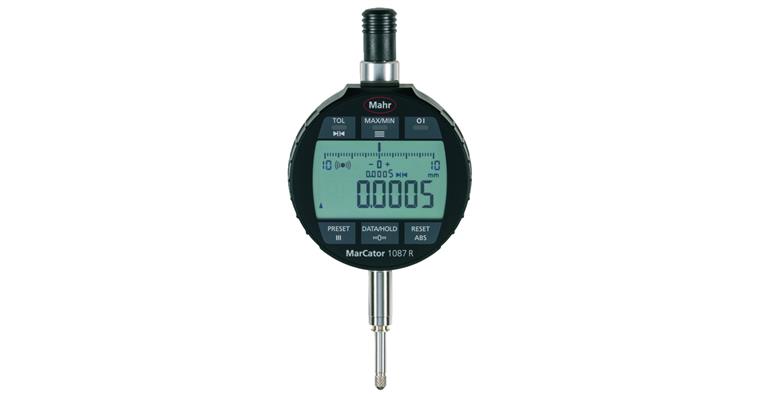

Digitale Messuhr 12,5 mm/0,0005 mm MarCator 1087 Ri

Digitale Messuhr 12,5 mm/0,0005 mm MarCator 1087 Ri

1033092202 Digitale Messuhr 12,5 mm/0,0005 mm MarCator 1087 Ri
Item no: 1033092 202

Online price:

Will be ordered for you

Application
Zum Messen von Längen und Längendifferenzen, z.B. Rundlauf-, Ebenheits-, Lagemessungen.

Execution
  • Für dynamische Messungen
  • iduktives Messsystem
  • Messwertklassierung mit farbiger LED-Anzeige
  • Bedien- und Anzeigeteil um 280° drehbar
  • moderne Touch Bedienung
  • robustes Display aus gehärtetem Glas
  • Optimale Konnektivität durch bidirektionale Datenschnittstelle
  • Anschlußgewinde M2,5
  • Funktionen: ON/OFF, RESET (Nullsetzen der Anzeige), TOL (Toleranzeingabe), <0> (Modus der Toleranzanzeige), mm/inch, 3xPRESET (Maßvoreinstellung), ABS (Anzeige kann auf Nul gesetzt werden ohne den Bezug zum Preset zu verlieren), DATA (in Verbindung mit Datenverbindungskabel), LOCK (individuelle Tastensperre), Ziffernschrittwert umschaltbar, Zählrichtungsumkehr

Advantage
Einstellungen, individuelle Sperrfunktionen sowie Fernsteuerung kompfortabel am PC per kostenloser Software MarCom Professional

Delivery
Messuhr
Batterie (Typ CR 2450)
Schraubendreher
Bedienungsanleitung


Brand: MAHR
Length measuring range: 12,5 mm
Max. length measuring range in inches: 0,5 in
Digit increment: 0,0005 mm
Digit increment in inches: 0,00002 in
Error limit: 0,004 mm
Data transmission type: Cable | Wireless
Min./max. measurement force: 0.65-0.9 N
Repeat accuracy: 0,001 mm
IP protection class: IP 42
Dynamic measurement: Yes
Shank diameter: 8 mm
Rotating housing: Yes
Calibration Group: CD
Other standard: Company standard
Outer diameter: 60 mm

Manufacturer part no.: 4337820

EAN no.: 4059192066642
