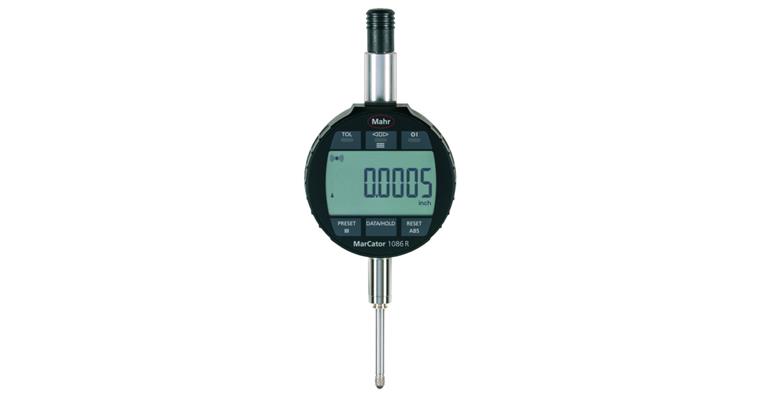

Digitale Messuhr 25 mm/0,0005 mm MarCator 1086 ZRi

Digitale Messuhr 25 mm/0,0005 mm MarCator 1086 ZRi

1033091505 Digitale Messuhr 25 mm/0,0005 mm MarCator 1086 ZRi
Item no: 1033091 505

Online price:

Will be ordered for you

Application
For measuring drill hole diameter to maximum depth of 2 metres

Execution
  • The large-sized hollow-structured handle reduces heat transfer from the operator by 50 %
  • Replaceable washers with a thickness of 0.5 mm are supplied as standard to enable precise settings in small steps
  • The contact points are made of carbide (>18 mm range), which ensures high durability and wear resistance
  • Bedien- und Anzeigeteil um 280° drehbar
  • moderne Touch Bedienung
  • robustes Display aus gehärtetem Glas
  • Optimale Konnektivität durch bidirektionale Datenschnittstelle
  • Anschlußgewinde 4-48 UNF, Einspannschaft 0,375 Zoll
  • Funktionen: ON/OFF, RESET (Nullsetzen der Anzeige), TOL (Toleranzeingabe), <0> (Modus der Toleranzanzeige), mm/inch, 3xPRESET (Maßvoreinstellung), ABS (Anzeige kann auf Nul gesetzt werden ohne den Bezug zum Preset zu verlieren), DATA (in Verbindung mit Datenverbindungskabel), LOCK (individuelle Tastensperre)
  • weitere Funktionen: Ziffernschrittwert umschaltbar

Advantage
Einstellungen, individuelle Sperrfunktionen sowie Fernsteuerung kompfortabel am PC per kostenloser Software MarCom Professional

Delivery
1x box
1x dial gauge
1x plastic cover for the dial gauge


Brand: MAHR
Length measuring range: 25 mm
Max. length measuring range in inches: 1 in
Digit increment: 0,0005 mm
Digit increment in inches: 0,00002 in
Error limit: 0,004 mm
Data transmission type: Wireless | Cable
Min./max. measurement force: 0.65-1.15 N
Repeat accuracy: 0,001 mm
IP protection class: IP 42
Dynamic measurement: No
Rotating housing: Yes
Calibration Group: CD
Other standard: Company standard
Outer diameter: 60 mm

Manufacturer part no.: 4337911

EAN no.: 4059192066468

Product Datasheet
