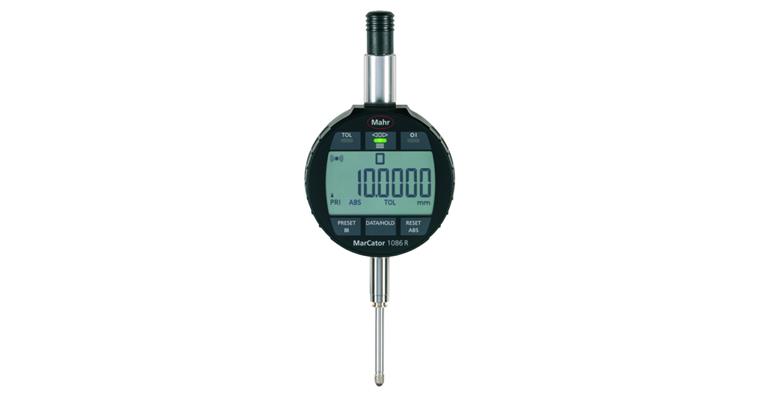

Digitale Messuhr 25 mm/0,0005 mm MarCator 1086 Ri ohne Messkraft

Item no: 1033091 503

Online price:

Catalogue price: You save:

Will be ordered for you

Min. order quantity: 1

Application
Zum Messen von Längen und Längendifferenzen, z.B. Rundlauf-, Ebenheits-, Lagemessungen.

Execution

Für statische Messungen
iduktives Messsystem
Messwertklassierung mit farbiger LED-Anzeige
Bedien- und Anzeigeteil um 280° drehbar
moderne Touch Bedienung
robustes Display aus gehärtetem Glas
Optimale Konnektivität durch bidirektionale Datenschnittstelle
Anschlußgewinde M2,5 ohne Feder
Funktionen: ON/OFF, RESET (Nullsetzen der Anzeige), TOL (Toleranzeingabe), <0> (Modus der Toleranzanzeige), mm/inch, 3xPRESET (Maßvoreinstellung), ABS (Anzeige kann auf Nul gesetzt werden ohne den Bezug zum Preset zu verlieren), DATA (in Verbindung mit Datenverbindungskabel), LOCK (individuelle Tastensperre)
weitere Funktionen: Ziffernschrittwert umschaltbar

Advantage
Einstellungen, individuelle Sperrfunktionen sowie Fernsteuerung kompfortabel am PC per kostenloser Software MarCom Professional

Delivery
Messuhr
Batterie (Typ CR 2450)
Schraubendreher
Bedienungsanleitung

Brand: MAHR
Length measuring range: 25 mm
Max. length measuring range in inches: 1 in
Type: Ausführung ohne Feder
Digit increment: 0,0005 mm
Digit increment in inches: 0,00002 in
Error limit: 0,004 mm
Data transmission type: Cable | Wireless
Repeat accuracy: 0,001 mm
IP protection class: IP 42
Dynamic measurement: No
Shank diameter: 8 mm
Rotating housing: Yes
Calibration Group: CD
Other standard: Company standard
Outer diameter: 60 mm

Manufacturer part no.: 4337731

EAN no.: 4059192066444
