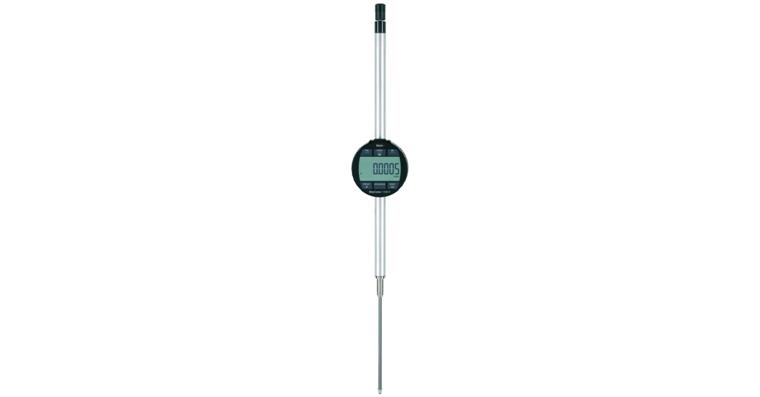

Digitale Messuhr 100 mm/0,0005 mm MarCator 1086 R

Digitale Messuhr 100 mm/0,0005 mm MarCator 1086 R

1033091304 Digitale Messuhr 100 mm/0,0005 mm MarCator 1086 R
Item no: 1033091 304

Online price:

Will be ordered for you

Application
Zum Messen von Längen und Längendifferenzen, z.B. Rundlauf-, Ebenheits-, Lagemessungen.

Execution
  • Für statische Messungen
  • iduktives Messsystem
  • Messwertklassierung mit farbiger LED-Anzeige
  • Bedien- und Anzeigeteil um 280° drehbar
  • moderne Touch Bedienung
  • robustes Display aus gehärtetem Glas
  • Optimale Konnektivität durch bidirektionale Datenschnittstelle
  • Anschlußgewinde M2,5
  • Funktionen: ON/OFF, RESET (Nullsetzen der Anzeige), TOL (Toleranzeingabe), <0> (Modus der Toleranzanzeige), mm/inch, 3xPRESET (Maßvoreinstellung), ABS (Anzeige kann auf Nul gesetzt werden ohne den Bezug zum Preset zu verlieren), DATA (in Verbindung mit Datenverbindungskabel), LOCK (individuelle Tastensperre)
  • weitere Funktionen: Ziffernschrittwert umschaltbar

Advantage
Einstellungen, individuelle Sperrfunktionen sowie Fernsteuerung kompfortabel am PC per kostenloser Software MarCom Professional

Delivery
Messuhr
Batterie (Typ CR 2450)
Schraubendreher
Bedienungsanleitung


Brand: MAHR
Length measuring range: 100 mm
Max. length measuring range in inches: 4 in
Digit increment: 0,0005 mm
Digit increment in inches: 0,00002 in
Error limit: 0,008 mm
Data transmission type: Cable
Min./max. measurement force: 1.8-3.5 N
Repeat accuracy: 0,001 mm
IP protection class: IP 42
Dynamic measurement: No
Shank diameter: 8 mm
Rotating housing: Yes
Calibration Group: CD
Other standard: Company standard
Outer diameter: 60 mm

Manufacturer part no.: 4337703

EAN no.: 4059192066376
