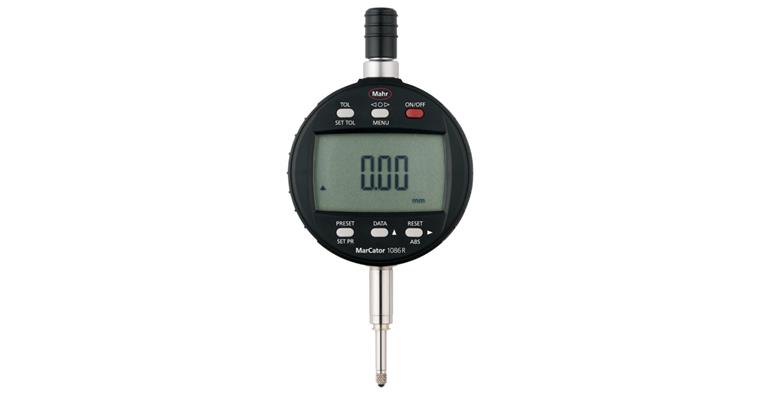

Digitale Messuhr 12,5 mm/0,01 mm 1086 R

Versions

Item no: 1033086 310

Online price:

Catalogue price: You save:

Still in stock: 1

Min. order quantity: 1

Application
Zum Messen von Längen und Längendifferenzen, z.B. Rundlauf-, Ebenheits-, Lagemessungen.

Execution

Für statische Messungen
Kontrastreiche LCD-Anzeige
Bedien- und Anzeigeteil um 280° drehbar
Einspannschaft und Messbolzen aus rostfreiem, gehärtetem Stahl
Sofort messbereit durch Reference-System
Funktionen: ON/OFF, RESET (Nullsetzen der Anzeige), mm/inch, Zählrichtungsumkehr, PRESET (Maßvoreinstellung), TOL (Toleranzeingabe), <0> (Modus der Toleranzanzeige), ABS (Anzeige kann auf Nul gesetzt werden ohne den Bezug zum Preset zu verlieren), DATA (in Verbindung mit Datenverbindungskabel), Faktor (einstellbar), LOCK (individuelle Tastensperre)

Delivery
Bedienungsanleitung
Batterie (Typ CR 2032)

Notes
Verbindungskabel siehe Art.-Nr. 1035200 404-406.
Weitere Größen auf Anfrage lieferbar.

Brand: MAHR
Length measuring range: 12,5 mm
Max. length measuring range in inches: 0,5 in
Digit increment: 0,01 mm
Digit increment in inches: 0,0005 in
Error limit: 0,02 mm
Data transmission type: Cable
Min./max. measurement force: 0.65-0.9 N
Repeat accuracy: 0,01 mm
IP protection class: IP 42
Dynamic measurement: No
Rotating housing: Yes
Digit height: 11 mm
Calibration Group: CD
Other standard: Company standard

Manufacturer part no.: 4337130

EAN no.: 4059192014391

Product Datasheet
