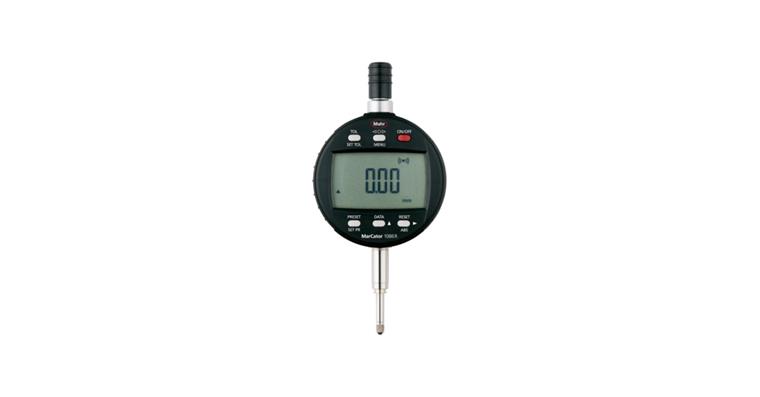

Digital dial gauge measuring range 12.5 mm reading 0.0005 mm IP 42

Digital dial gauge measuring range 12.5 mm reading 0.0005 mm IP 42

1033086201 Digital dial gauge measuring range 12.5 mm reading 0.0005 mm IP 42
Item no: 1033086 201

Online price:

Still in stock: 3

Application
For measuring lengths and length differences, e.g. concentricity, flatness, positional measurements.

Execution
  • For static measurements
  • High-contrast LCD display
  • Operating and display elements can be rotated through 280°
  • Clamping shaft and measuring pin made of hardened stainless steel
  • Ready to measure straight away due to reference system
  • Functions: ON/OFF, RESET (sets the display to zero), mm/inch, counting direction reversal, PRESET (measurement presetting), TOL (tolerance input), <0> (tolerance display mode), ABS (display can be set to zero without losing the reference to the preset), DATA (in conjunction with data connection cable), Factor (adjustable), LOCK (individual key lock)

Delivery
1x operating instructions
1x battery

Notes
For connection cables, see art. no. 1035200 404-406.
For wireless receiver, see art. no. 1035200 410.
For replacement batteries, see art. no. 1039900 202.
Other sizes deliverable on request.

Brand: MAHR
Length measuring range: 12,5 mm
Digit increment: 0,0005 mm
Digit increment in inches: 0,00002 in
Error limit: 0,004 mm
Data transmission type: Wireless | Cable
Min./max. measurement force: 0.65-0.9 N
Repeat accuracy: 0,001 mm
IP protection class: IP 42
Dynamic measurement: No
Rotating housing: Yes
Digit height: 11 mm
Calibration Group: CD
Other standard: Company standard

Manufacturer part no.: 4337624

EAN no.: 4059192014537
