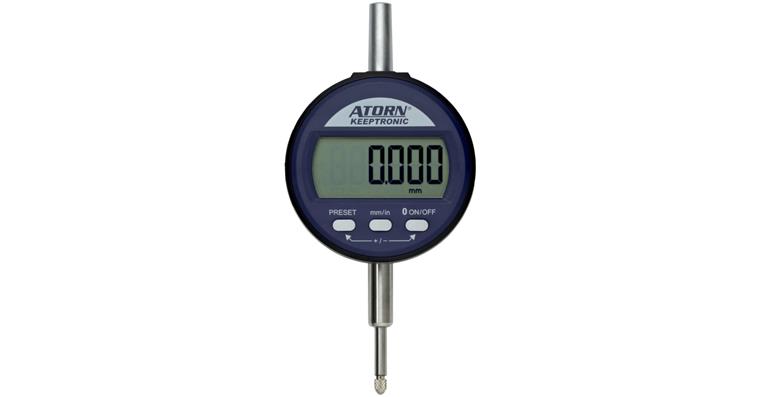

ATORN dial gauge, KEEPTRONIC 12.5 mm 0.01 mm increment, multiCOM data output

ATORN dial gauge, KEEPTRONIC 12.5 mm 0.01 mm increment, multiCOM data output

ATORN dial gauge, KEEPTRONIC 12.5 mm 0.01 mm increment, multiCOM data output
Item no: 1033085 201

Online price:

Available for immediate delivery

Application
For static measurements of lengths and length differences

Execution
  • Zero setting at any position
  • Large LCD display (12 mm)
  • Keeptronic System
  • mm/inch switch-over

Advantage
  • LOCK function (key lock)
  • Switched on by the ON button or automatically switched on by moving the button
  • Particularly energy-saving electronics (battery lifetime up to 3 years)

Delivery
Battery (1 x 3 V lithium type CR 2032)

Notes
Connecting cable, see art. no. 1035200 404-406.

Brand: ATORN
Length measuring range: 12,5 mm
Digit increment: 0,01 mm
Error limit: 20 µm
Repeat accuracy: 10 µm
Data transmission type: multiCOM
IP protection class: IP 52
Min./max. measurement force: 0.5-1.0 N
Functions: With mm / inch switching | With zero setting at any position | Lock-function (Keybord lock) | Automatic switch-off | Absolute function | Preset function | Reversal of counting direction
Connection thread: M2.5
Number of batteries x name of batteries: 1 Stck(pcs) x 3V CR2032 Lithium

ATORN-No.: 30403010

EAN no.: 4050293316629

User Manual Product Datasheet
