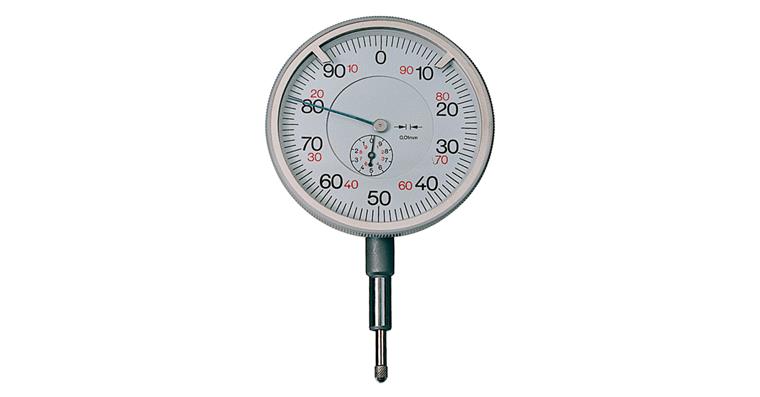

Large dial gauge reading 0.01 mm DIN 878 MR 10 mm dia. 100 mm

Large dial gauge reading 0.01 mm DIN 878 MR 10 mm dia. 100 mm

1033040102 Large dial gauge reading 0.01 mm DIN 878 MR 10 mm dia. 100 mm
Item no: 1033040 102

Online price:

Available in 6-8 working days.

Application
For measuring lengths and length differences, e.g. concentricity, flatness, positional measurements

Execution
  • Line scales with knurled outer ring, rotatable by 360° to the pointer zero position
  • 2 pointers (small pointer for absolute mm display)
  • 2 adjustable tolerance marks
  • Clamping shank dia. 8 mm h6 hardened and ground
  • Hot-pressed brass housing, matt chrome-plated
  • Replaceable gauge slides
  • Accuracy according to factory standard

Notes
For special probe, see art. no. 1033114.

Brand: HHW
Length measuring range: 10 mm
Scale value: 0,01 mm
Measurement travel of one pointer revolution: 1 mm
Outer diameter: 100 mm
Shank diameter: 8 mm
IP protection class: 0 - not applicable
Shock protection: No
Material of outer ring: Plastic
Rotating housing: 0 - not applicable
Shaft length: 20,5 mm
Digit increment: 0,01 mm
Other standard: Company standard
Calibration Group: C

EAN no.: 4024496080953

Product Datasheet
