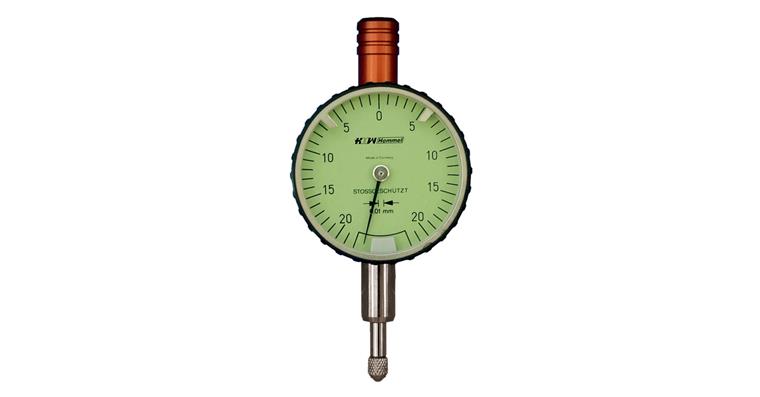

Safety dial gauge reading 0.01 mm large free stroke MR 0.4 mm dia. 40 mm

Safety dial gauge reading 0.01 mm large free stroke MR 0.4 mm dia. 40 mm

1033035101 Safety dial gauge reading 0.01 mm large free stroke MR 0.4 mm dia. 40 mm
Item no: 1033035 101

Online price:

Available in 6-8 working days.

Application
For measuring lengths and length differences, e.g. concentricity, flatness, positional measurements.

Execution
  • With large free stroke and shock protection device
  • Display range limited to less than 1 pointer revolution to prevent incorrect readings
  • Nickel-plated metal housing, clamping shank and measuring pin made of stainless steel
  • With metal lifting sleeve
  • Line scales with knurled outer ring, rotatable by 360° to the pointer zero position
  • 2 adjustable tolerance marks
  • Clamping shank dia. 8 mm h6 hardened and ground
  • Replaceable gauge slides

Notes
For special probe, see art. no. 1033114.

Brand: HHW
Length measuring range: 0,4 mm
Scale value: 0,01 mm
Measurement travel of one pointer revolution: 0,5 mm
Outer diameter: 40 mm
Shank diameter: 8 mm
Shock protection: Yes
Material of outer ring: Plastic
Rotating housing: No
Digit increment: 0,01 mm
DIN: 878

EAN no.: 4024496080922

Product Datasheet
