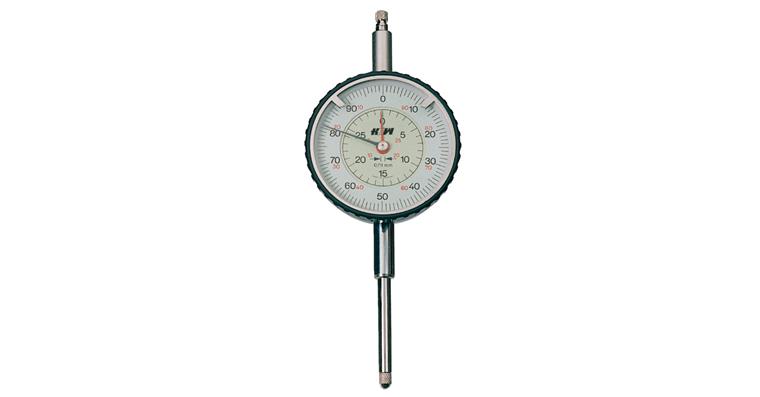

Dial gauge read. 0.01 mm accuracy per factory stand. large MR 100 mm dia. 58 mm

Dial gauge read. 0.01 mm accuracy per factory stand. large MR 100 mm dia. 58 mm

1033025104 Dial gauge read. 0.01 mm accuracy per factory stand. large MR 100 mm dia. 58 mm
Item no: 1033025 104

Online price:

Available in 6-8 working days.

Application
For measuring lengths and length differences, e.g. concentricity, flatness, positional measurements.

Execution
  • With large measuring range
  • Nickel-plated metal housing
  • Line scales with knurled outer ring, rotatable by 360° to the pointer zero position
  • 2x adjustable tolerance marks
  • 2x pointers (small pointer is arranged concentrically as an absolute mm display for clear reading)
  • Essential points of the measuring element are embedded in sapphire, ruby or ceramic perforated blocks
  • Hardened and ground clamping shank and measuring pin made of stainless steel, interchangeable gauge slides
  • Replaceable indicator contact points

Advantage
The dial gauge is designed for use in a vertical position. When used in other positions, the measuring force must be increased due to the high weight of the measuring pin.

Notes
For special probe, see art. no. 1033114.

Brand: HHW
Length measuring range: 100 mm
Scale value: 0,01 mm
Measurement travel of one pointer revolution: 1 mm
Outer diameter: 58 mm
Shank diameter: 10 mm
IP protection class: 0 - not applicable
Shock protection: No
Material of outer ring: Plastic
Rotating housing: No
Shaft length: 75,5 mm
Digit increment: 0,01 mm
Other standard: Company standard
Calibration Group: C

EAN no.: 4024496080908

Product Datasheet
