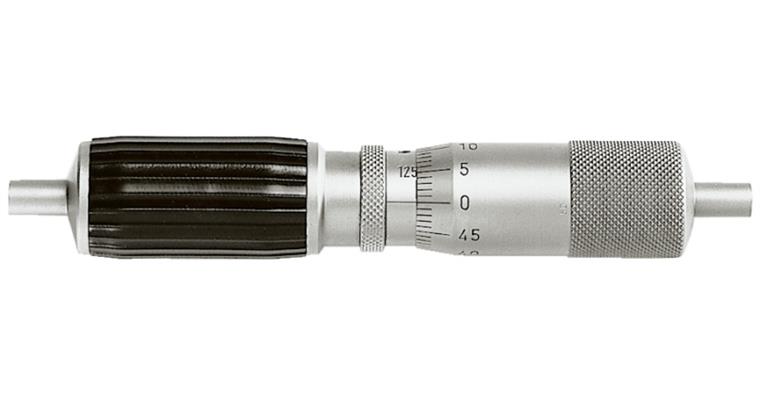

Precision 2-point internal micrometer MR 225-250

Precision 2-point internal micrometer MR 225-250

Precision 2-point internal micrometer MR 225-250
Item no: 1031750 209

Online price:

Available in 7-9 working days.

Application
For measuring internal dimensions in the form of cylindrical bores, diameters of turned grooves, the distance between two plane-parallel surfaces etc.

Execution
  • Body made of steel, fully brushed chromium-plated for glare-free reading
  • Spindle thread hardened and ground
  • Measuring surfaces carbide-tipped and spherically lapped
  • With insulation against heat from hands
  • Clamping ring for locking the reading drum during measurement
  • Smooth-running spindle thread

Delivery
With adjustment wrench and certificate of constancy of performance

Notes
Other set combinations, extensions and holders deliverable on request.

Brand: HHW
Min./max. length measuring range: 225-250 mm
Vernier scale: 0.01 mm
Error limit: 0,004 mm
Calibration Group: H
Measuring spindle increments: 0,5 mm
DIN: 863
Spindle clamping: Yes

EAN no.: 4024496072163

Product Datasheet
