Digitale Bügelmessschraube 75-100mm ohne Datenausgang Micromar 40 EWR IP65

Digitale Bügelmessschraube 75-100mm ohne Datenausgang Micromar 40 EWR IP65

Digitale Bügelmessschraube 75-100mm ohne Datenausgang Micromar 40 EWR IP65
Item no: 1031563 104

Online price:

Available in 6-8 working days.

Application
For measuring e.g. shaft diameters, external dimensions on workpieces etc.

Execution
  • High-contrast digital display
  • Fully hardened and ground stainless steel measuring spindle
  • Carbide-reinforced measuring spindle and anvil
  • Quick drive
  • Ratchet tool on the front
  • Funktionen: RESET (Nullsetzen der Anzeige), ABS (Anzeige kann auf Null gesetzt werden ohne den Bezug zum Preset zu verlieren), mm/inch, Preset (Maßvoreinstellung), LOCK-Funktion (Tastatursperre), HOLD (Messwertspeicherung)
  • Functions: RESET (setting the display to zero), ABS (display can be set to zero without losing the reference to the preset), mm/inch, preset (measurement pre-setting), LOCK function (keypad lock), HOLD (measured value storage)

Advantage
Thermally insulated painted steel frame

Delivery
1x 3 V battery (type CR 2032)
1x operating instructions
1x case
1x setting gauge (from measuring range 25-50 mm)

Notes
For setting gauges, see art. no. 1031579.
For replacement batteries, see art. no. 1039900 102.

Brand: MAHR
Min./max. length measuring range: 75-100 mm
Digit increment: 0,001 mm
Measuring spindle increments: 0,5 mm
Measuring surface diameter: 6,5 mm
Data transmission type: No
Error limit: 0,003 mm
Min./max. length measuring range in inches: 3-4 in
Digit increment in inches: 0,0005 in
IP protection class: IP 65
Other standard: Company standard
Spindle clamping: Yes
Digit height: 10 mm
Bracket depth: 57 mm
Min./max. measurement force: 5-10 N
Number of setting dimensions: 1 PCS
Calibration Group: D | E

Manufacturer part no.: 4157014

EAN no.: 4059192058425

Product Datasheet
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN die HSS EN 22568 MF-L 24x1.5 6g outer diameter 55 mm
    148,42 €
  • ATORN twist drill N HSS, steam-treated, DIN 338, 3.0 mm x 61 mm x 33 mm, 118°
    1,80 €
  • ATORN milling cutter holder BT30 (ISO 7388-2) dia. 12 mm A=60 mm
    138,70 €

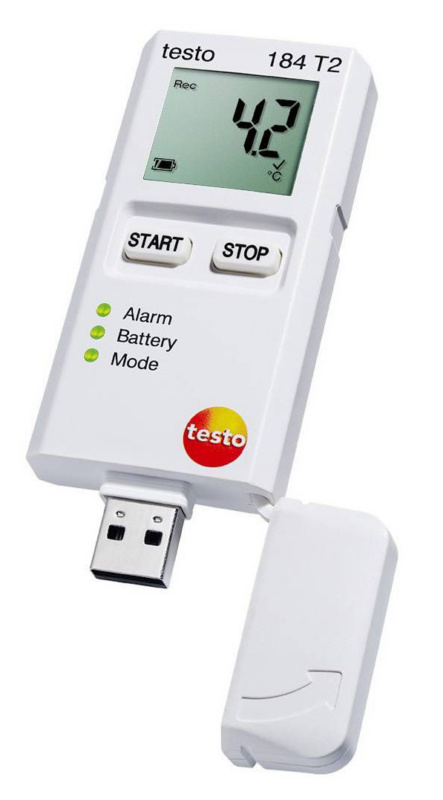

  • Datenlogger Temperatur für Transportüberwachung testo 184 T2
    63,00 €
  • ATORN cutting disc for steel/cast iron - type A30S-BF, 125x2.5x22.23 mm
  •

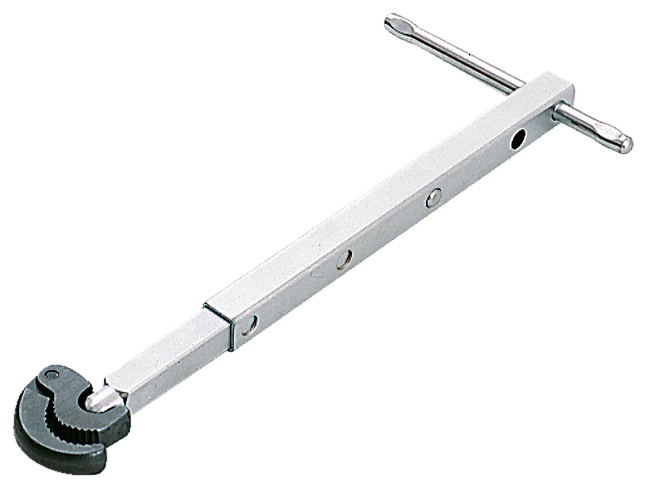

    Telescopic stop cock nut wrench, SW 10–32 mm length 250–460 mm
    40,33 €

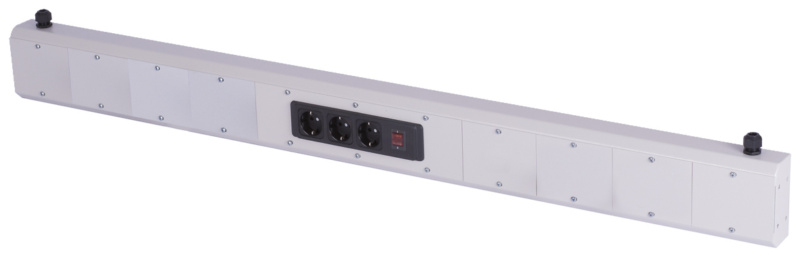

  • Energy duct 3xSchuko 1xon/off switch 1xCEE 2xpneumatic 1500x60x130mm
