Digitale-Bügelmessschraube mit Zubehör 40 EWR-V

Digitale-Bügelmessschraube mit Zubehör 40 EWR-V

Digitale-Bügelmessschraube mit Zubehör 40 EWR-V
Item no: 1031562 103

Online price:

Available in 6-8 working days.

Application
For measuring e.g. shaft diameters, external dimensions on workpieces etc. Universal adjustment to different workpiece and measurement situations using individually replaceable gauge slides.

Execution
  • High-contrast digital display
  • Fully hardened and ground stainless steel measuring spindle
  • Mounting holes for gauge slides with shaft diameter 3.5 mm
  • QUICK DRIVE quick adjustment
  • Non-rotating spindle
  • Ratchet tool on the front
  • Thermally insulated painted steel frame
  • Features: RESET (sets the display to zero), ABS (display can be set to zero without losing the reference to the ORIGIN), mm/inch, ORIGIN (measurement presetting), LOCK function (key lock), TOL (input of tolerances and warning limits), HOLD (measured value storage), DATA (data transfer), bi-directional data interface (external querying and input of characteristic values as well as adjustment of individual function blocks via MarCom software)

Advantage
MarCom Professional free download: www.mahr.com/marcom

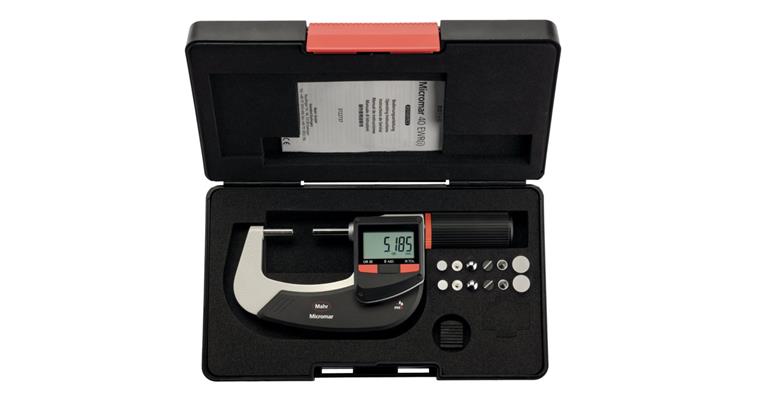

Delivery
1x operating instructions
1x battery
1x case
1x pair 40 Ef flat gauge slides, dia. 6.5 mm
1x pair 40 Ea offset gauge slides, dia. 2 x 4 mm
1x pair 40 Et plate gauge slides, dia. 11.3 mm
1x pair 40 Eb spherical gauge slides, R=5 mm
1x pair 40 Ep ball gauge slides 60° dia. 0.3-5.5 mm
1x pair 40 Es gauge slides with blade 0.75 x 4 mm


Brand: MAHR
Min./max. length measuring range: 0-25 mm
Type: 40 EWR-V
Digit increment: 0,001 mm
Measuring spindle increments: 5 mm
Measuring surface diameter: 6,5 mm
Data transmission type: Cable
Error limit: 0,004 mm
Min./max. length measuring range in inches: 0-1 in
Digit increment in inches: 0,0005 in
IP protection class: IP 65
DIN: 863
Digit height: 10 mm
Bracket depth: 32 mm
Min./max. measurement force: 5-10 N
Number of setting dimensions: 0 PCS
Calibration Group: D

Manufacturer part no.: 4157050
