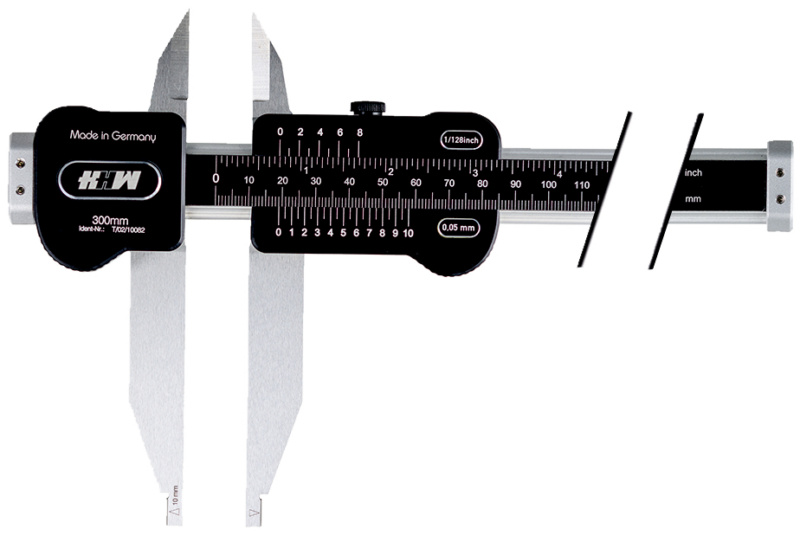

Precision workshop callipers 0-300 mm with blade tips and fine adjustment

Precision workshop callipers 0-300 mm with blade tips and fine adjustment

Precision workshop callipers 0-300 mm with blade tips and fine adjustment
Item no: 1031078 303

Online price:

Available in 8-10 working days.

Application
For measuring external and internal dimensions

Execution
  • With blade tips, with fine adjustment
  • Measuring surfaces and guideways finely ground
  • High-precision laser-engraved and brushed chrome-plated vernier scale and graduations
  • Offset jaw ends for measuring internal dimensions
  • Bevelled blade tips for measuring narrow points
  • With locking screw at the top
  • Main pitch lowered slightly to prevent damage and wear


Brand: HELIOS-PREISSER
Min./max. length measuring range: 0-300 mm
Vernier scale: 0.05 mm
Measuring tips: Yes
Fine adjustment: Yes
Length of jaw: 90 mm
Vernier scale (imperial): 1/128 inch
Min./max. length measuring range in inches: 0-12 in
Error limit: 0,05 mm
Type of locating: With locking screw
DIN: 862
Calibration Group: A

Manufacturer part no.: 0235503

EAN no.: 4029713201562

Product Datasheet
