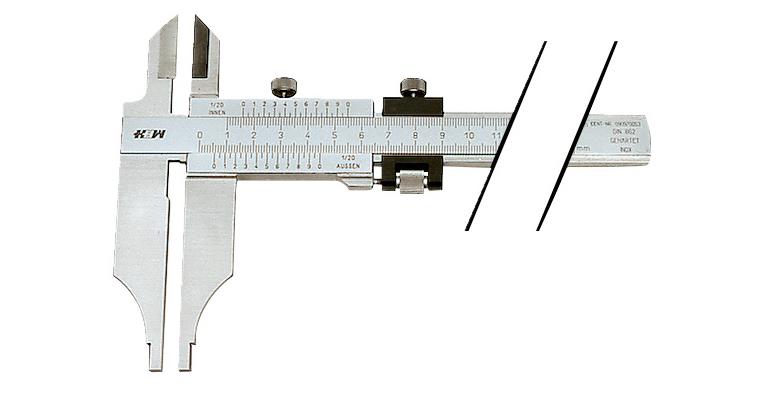

Precision workshop callipers 0-300 mm with blade tips and fine adjustment

Precision workshop callipers 0-300 mm with blade tips and fine adjustment

Precision workshop callipers 0-300 mm with blade tips and fine adjustment
Item no: 1031081 103

Online price:

Available in 13-15 working days.

Application
For measuring external and internal dimensions

Execution
  • With blade tips, with fine adjustment
  • With parallax-free reading
  • Measuring surfaces finely ground
  • Offset jaw ends for measuring internal dimensions
  • With locking screw at the top
  • Stainless steel, hardened and ground
  • Graduations: mm at top and bottom, for direct reading of the external and internal measured values
  • High-precision laser-engraved and brushed chrome-plated vernier scale and graduations


Brand: HHW
Min./max. length measuring range: 0-300 mm
Vernier scale: 0.05 mm
Measuring tips: Yes
Fine adjustment: Yes
Length of jaw: 90 mm
Vernier scale (imperial): 1/128 inch
Min./max. length measuring range in inches: 0-12 in
Type of locating: With locking screw
DIN: 862
Calibration Group: A

EAN no.: 4024496071111

Product Datasheet
