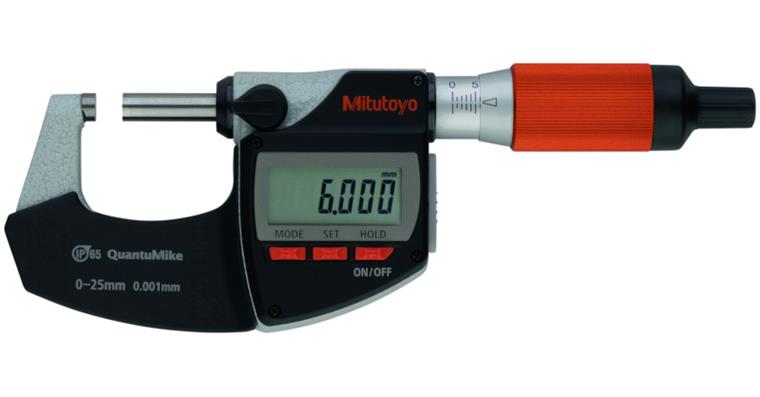

Digitale Bügelmessschraube Messbereich 0-25 mm QuantuMike IP65 Datenausgang

Digitale Bügelmessschraube Messbereich 0-25 mm QuantuMike IP65 Datenausgang

Digitale Bügelmessschraube Messbereich 0-25 mm QuantuMike IP65 Datenausgang
Item no: 1031016 901

Online price:

Still in stock: 5

Application
For measuring e.g. shaft diameters, external dimensions on workpieces etc.

Execution
  • Bi-directional communication, e.g. to perform the parameter setting using a PC (Digimatic S 1 interface)
  • Ratchet mechanism and compact design enable simple one-hand or stand operation
  • Equipped with calibration schedule warning function
  • Approach speed warning function for reliable measurement
  • Functions: ON/OFF, ABS/INC (INC ZERO), automatic switch-off after 20 min. of no function, low voltage alarm, function lock, HOLD, PRESET, GO/±NG evaluation, calculation function (with formula), user-friendly keys, calibration warning

Advantage
  • Faster measurement by using a larger spindle pitch of 2 mm/rev
  • Annäherungsgeschwindigkeitswarnfunktion für zuverlässige Messungen

Delivery
1x box
1x key
1x battery (type CR2032)
1x setting standard (from 25 mm)


Brand: MITUTOYO
Min./max. length measuring range: 0-25 mm
Digit increment: 0,001 mm
Measuring spindle increments: 2 mm
Measuring surface diameter: 6,3 mm
Data transmission type: Wireless | Cable | Bluetooth
Error limit: 0,001 mm
IP protection class: IP 65
Other standard: Company standard
Spindle clamping: Yes
Digit height: 7,5 mm
Bracket depth: 25 mm
Min./max. measurement force: 7-12 N
Number of setting dimensions: 0 PCS
Calibration Group: D

Manufacturer part no.: 293-140-40

EAN no.: 4550501379670

Product Datasheet
Versions
loading
Keywords:

[Text nicht gefunden]

  • QuantuMike digital micrometer measuring range 25-50 mm
  •
    QuantuMike digital micrometer measuring range 50-75 mm
  •
    Digitale Bügelmessschraube QuickMike Messbereich 25-55 mm
    621,92 €

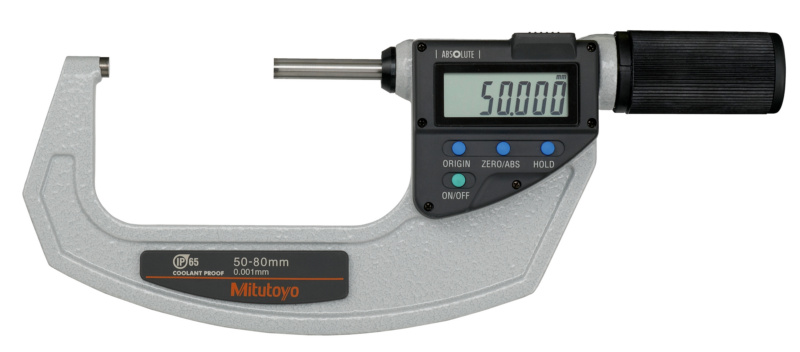

  • Digitale Bügelmessschraube QuickMike Messbereich 50-80 mm
    667,00 €

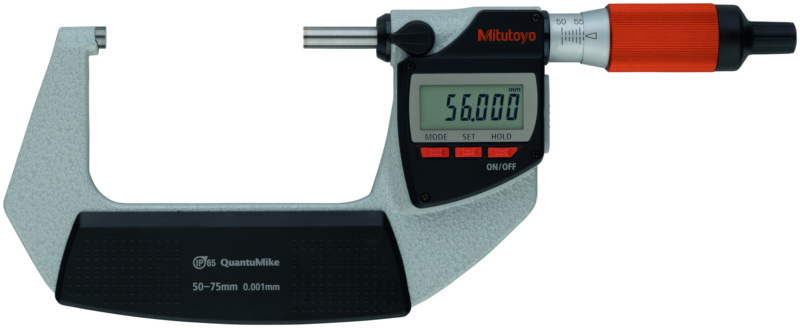

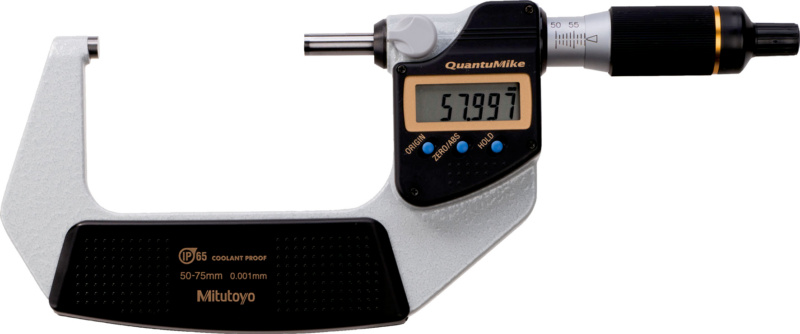

  • Digitale Bügelmessschraube Messbereich 50-75 mm QuantuMike IP65 Datenausgang
    511,52 €

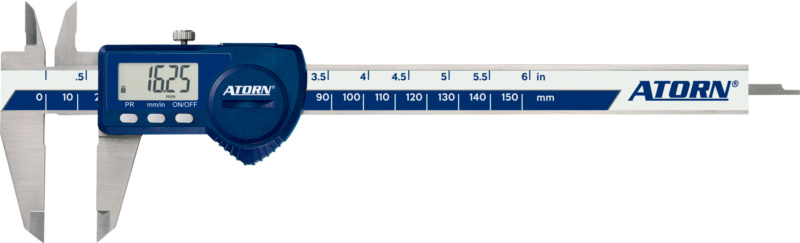

  • ATORN vernier calipers IP40 electr. 150 mm w data output depth gauge flat
  •

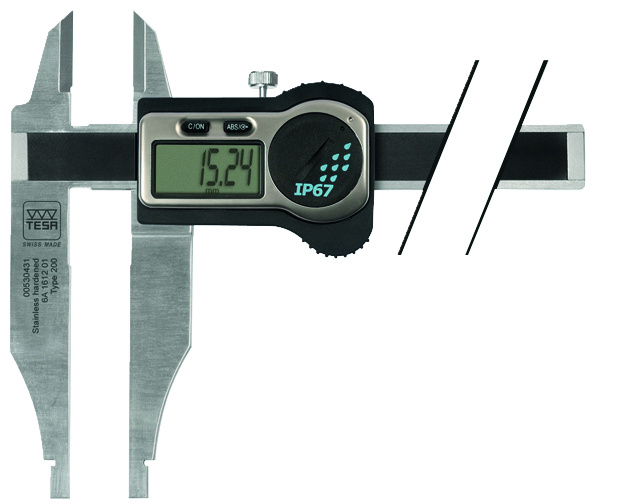

    TWIN-CAL IP67 dig. workshop callipers 0-800 mm, w. blade tips, data output
    1.394,88 €

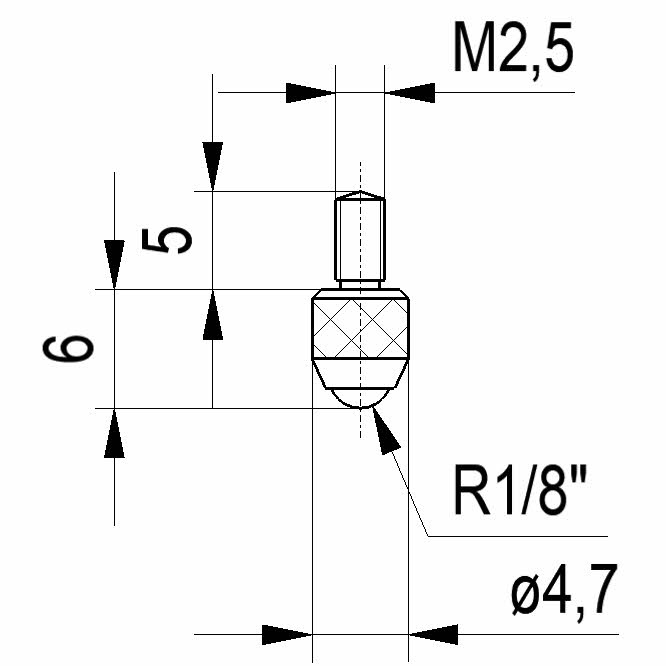

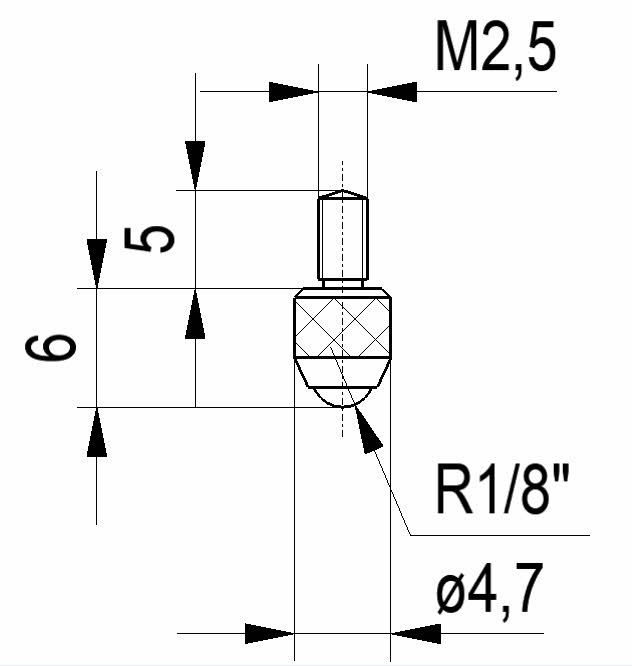

  • Ball probe no.12b f. dial gauges+prec. point. conn. thr. M2.5 ceramic ins. 3 mm
