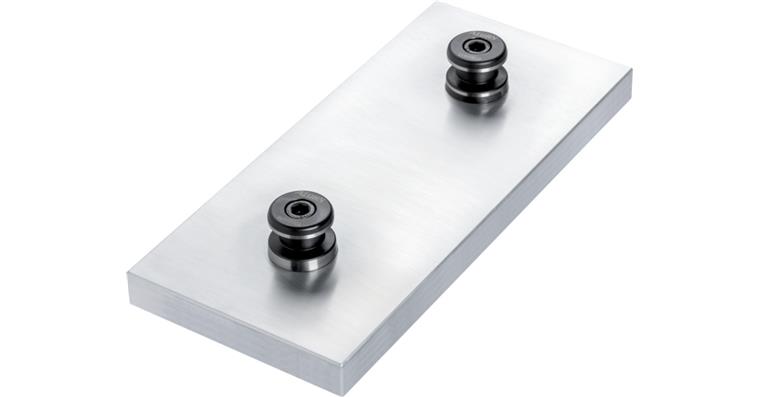

ATORN Easy Point adapter plate for two clamping pots

Versions

Item no: 1027861 102

Online price:

Catalogue price: You save:

Available in 4-6 working days.

Min. order quantity: 1

Application
The adapter plates are usually placed directly on the corresponding ATORN Easy Point basic system. They serve as a base plate for various clamping devices and simplify the connection between the zero point clamping system and, for example, a vice.

Execution

Adapter plate made of high-strength aluminium
Repeat accuracy < 0.005 mm

Advantage

Quick and easy connection to the ATORN Easy Point basic system
Clamping devices and modules can be freely positioned on the adapter plate

Delivery
1x adapter plate

Brand: ATORN
Width: 346 mm
Height: 26 mm
Length: 156 mm
Distance: 200 mm

ATORN-No.: 22880007

EAN no.: 4066107007683

Product Datasheet
