Push rod clamp heavy-duty size 5 clamping force 10 kN

Push rod clamp heavy-duty size 5 clamping force 10 kN

Push rod clamp heavy-duty size 5 clamping force 10 kN
Item no: 1027355 102

Online price:

Available for immediate delivery

Execution
  • Compression and tension clamp (push rod and hand lever in synchronous operation)
  • Heavy-duty design with long push rod guide
  • Basic body made of malleable iron, painted
  • Lever parts and push rod made from heat-treated steel, zinc-plated and passivated
  • Stainless steel rivets running in case-hardened bearing bushes for size 3
  • Bearing points greased
  • Ergonomic, oil-resistant handle with large hand rest and soft component

Delivery
Complete with heat-treated, zinc-plated pressure screw.


Brand: AMF
Size: 5
Min./max. width (B min./max.): 58-98 mm
Retaining force (F1): 10 kN
Max. tensile force (F2): 10 kN
Clamping height (H): 38 mm
Height (H1): 137,5 mm
Clamping stroke (HUB): 40 mm
Length, open (L1): 174 mm
Length (L2): 156 mm
Thumbscrew size (Andrückschraube): M12 x 50 mm
External width (A): 16 mm
Hole distance 1 (C): 41 mm
Bore diameter (D): 8,5 mm
Hole distance 2 (K): 45 mm
Min./max. hole distance (M min./max.): 41-50 mm
Plate width (N): 71 mm
Plate length (P): 121 mm
Weight: 1115 g

Manufacturer part no.: 6842-5

EAN no.: 4020772094256

Product Datasheet
Versions
loading
Keywords:

[Text nicht gefunden]

  • Twist drill bit set, loose 25 pieces, HSS, ground 1-13 mm in 0.5 mm increments
    91,40 €
  • Twist drill bit set, loose 51 pieces, HSS-E, ground 1-6 mm in 0.1 mm increments
    165,90 €
  • Slabbing cut drill reamer HSS-E size 1 for bore dia. 3–14 mm
  •
    Slabbing cut drill reamer HSS-E size 6 for bore dia. 46–60 mm
  •
    Slabbing cut drill reamer HSS-E+TiN size 7 for bore dia. 4–30.5 mm
  •
    Machine reamer DIN 212 cyl. spiral-fluted HSS-E 5.0 mm
  •
    Push rod clamp short design size 3 clamping force 2.5 kN
  •
    Push rod clamp short design size 5 clamping force 4.0 kN
  •
    Push rod clamp heavy-duty size 3 clamping force 4 kN
  •
    Push rod clamp heavy-duty size 7 clamping force 25 kN
  •

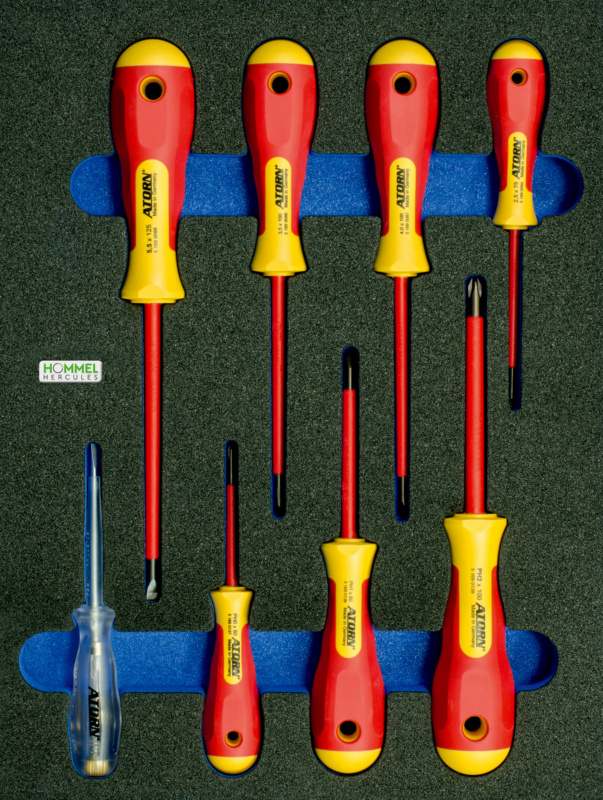

    VDE electrician's screwdriver set 8 pieces in OPT-I-STORE insert 260x345x30mm
  •
