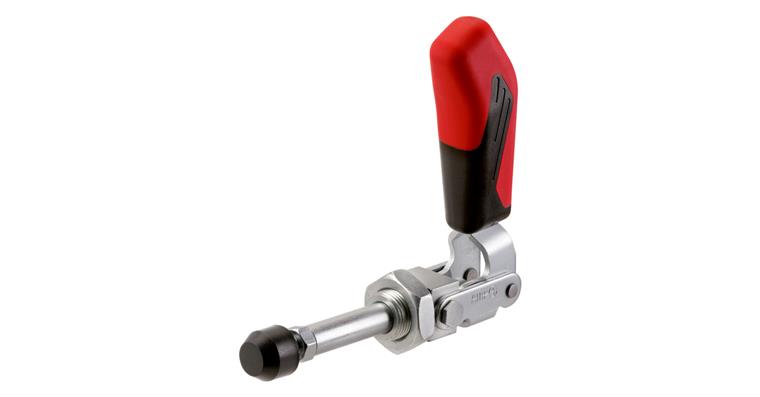

Push rod clamp short design size 5 clamping force 4.0 kN

Push rod clamp short design size 5 clamping force 4.0 kN

Push rod clamp short design size 5 clamping force 4.0 kN
Item no: 1027340 103

Online price:

Available for immediate delivery

Application
For quick and secure clamping on machine tables and appliances. The push rod clamp can be attached to sheet metal walls or screwed into fixture bodies with a front thread. Flange mounting is also possible using an angular base, AMF no. 6843

Execution
  • Compression and tension clamps - short design
  • Long push rod guide with fastening thread and nut
  • Zinc-plated and passivated
  • Stainless steel rivets
  • Fitting screws tempered
  • Bearing points greased
  • Ergonomic, oil-resistant handle with large hand rest and soft component

Delivery
Complete with heat-treated, zinc-plated pressure screw.

Notes
Also deliverable in "STAINLESS STEEL rust-proof" design.

Brand: AMF
Size: 5
Width (B): 92 mm
Retaining force (F1): 4 kN
Max. tensile force (F2): 4 kN
Clamping height (H): 37 mm
Height (H1): 149 mm
Clamping stroke (HUB): 67 mm
Length, open (L1): 175 mm
Length (L2): 24 mm
Length, clamped (L3): 139 mm
Thread dimension (M2): M24 x 1.5
Thumbscrew size (Andrückschraube): M12 x 50 mm
External width (A): 16 mm
Suitable for screw (M): M12
Plate width (N): 49 mm
Weight: 1200 g

Manufacturer part no.: 6844-5

EAN no.: 4020772094331
