ATORN tapping chuck size 1 HSK 63 A, Synchrolize.

ATORN tapping chuck size 1 HSK 63 A, Synchrolize.

ATORN tapping chuck size 1 HSK 63 A, Synchrolize.
Item no: 1021837 101

Online price:

Still in stock: 8

Application
For thread cutting on machine tools with synchronous spindles. With rigidly clamped screw taps, pitch errors cause high axial forces that can be compensated for by synchronous tapping chucks through minimal length compensation under pressure and tension.

Execution
  • Pitch errors are compensated for with minimal length compensation of 1.0 mm under tension and 0.2 mm under pressure
  • Clamping screws prevent the clamped screw tap from spinning
  • Thread-cutting quick-change chuck for synchronous spindles

Advantage
  • Increased tool service life
  • Secure clamping in quick-change inserts for ER collets

Delivery
1x tapping chuck


Brand: ATORN
Tool holding device: HSK 63
Used sizes: 1
Suitable for thread: M3-M12
Pressure length compensation: 0,2 mm
Form: A
Tension length compensation: 1 mm
Projecting length (A): 64 mm
Outer diameter (D): 43 mm
Insert diameter: 20 mm
DIN: 69893-1

ATORN-No.: 21980005

EAN no.: 4050293318647

Product Datasheet
Versions
loading
Keywords:

You might also be interested in this

  • ATORN tapping chuck size 1 dia. 25 mm, Synchrolize.
  • ATORN tapping chuck size 2 dia. 25 mm, Synchrolize.
  • ATORN solid carbide slotting cutter ultra T=2 9.00 mm shaft DIN 6535 HB
  • ATORN adapter for test stands for OS2 and OS2-OO

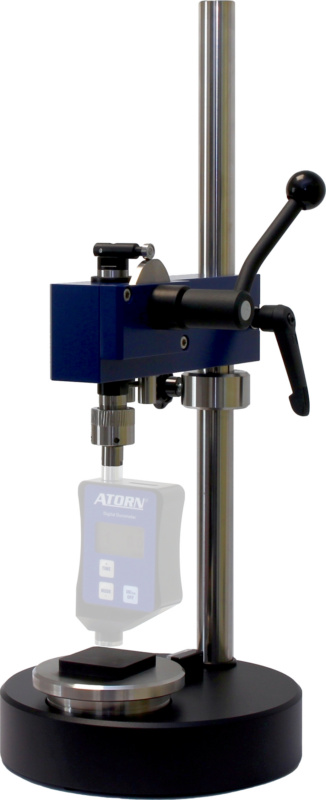

  • ATORN test stand OS2-OO for Shore OO hardness tester incl. setting disc
