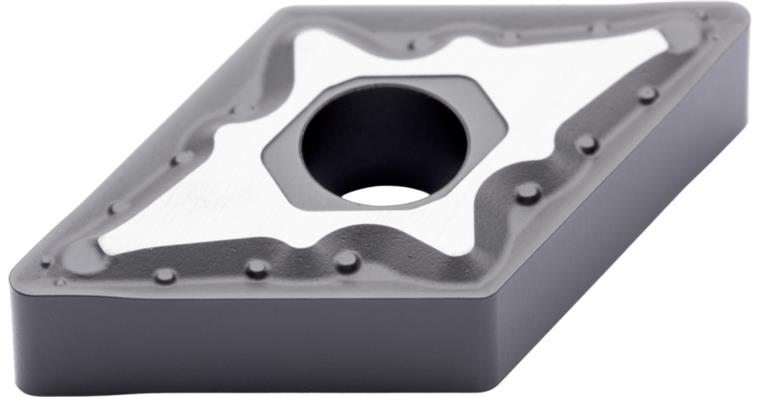

ATORN carbide indexable insert DNMG 150404-MP5 ACP25T

ATORN carbide indexable insert DNMG 150404-MP5 ACP25T

ATORN carbide indexable insert DNMG 150404-MP5 ACP25T
Item no: 1019410 123

Online price:

Available in 6-8 working days.

Advantage
  • One-sided chip breaker
  • Maximum machining reliability
  • Chip breaker for heavy cutting
  • Increased cutting force, reduced temperature and chatter


Brand: ATORN
Shape of indexable insert ISO: D
Clearance angle of indexable insert ISO: N
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: G
Size of indexable insert ISO: 15
Thickness of indexable insert ISO: 04
Corner radius of indexable insert ISO: 04
Coating: CVD
Carbide type area ISO: P
Machining conditions for indexable insert: Medium
Carbide type ISO: P25
Carbide type: ACP25T
ISO-Code Rotating: DNMG 150404
Material to be processed: Steel | Stainless steel | Cast metal
min./max. ap: 1.0-4.0 mm
f min./max.: 0.2-0.45 mm/U
Materials group: K (secondary application) | M (secondary application) | P (primary application)
f min.: 0,2 mm/r
max. f: 0,45 mm/r
max. ap: 4,0 mm
min. ap: 1,0 mm
Supply type: Medium processing - Universal geometry with wide service range
Chip breaker code: MP5
Min./max. Vc in steel: 100-240 m/min
Min./max. Vc in cast iron: 120-250 m/min
Min./max. Vc in stainless steel: 70-200 m/min
Number of pieces per packet: 10 PCS

ATORN-No.: 12370634

EAN no.: 4050293727890

Product Datasheet
