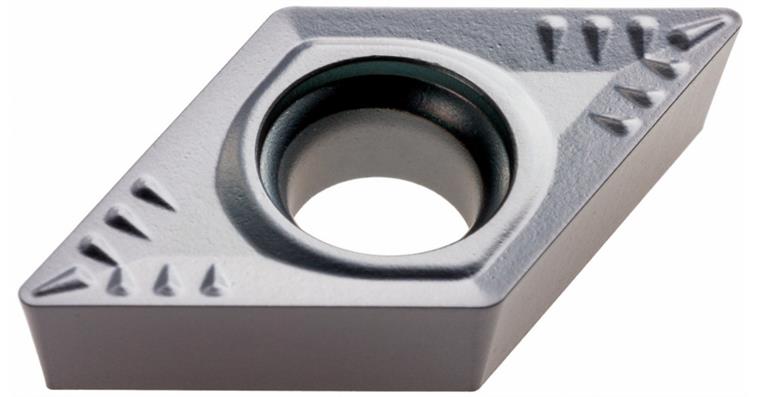

ATORN carbide indexable insert DCMT 070204-FM1 APM25T

ATORN carbide indexable insert DCMT 070204-FM1 APM25T

ATORN carbide indexable insert DCMT 070204-FM1 APM25T
Item no: 1019407 131

Online price:

Available in 6-8 working days.

Advantage
  • Long service life
  • Optimised chip breaker for excellent chip control
  • Smooth chip flow


Brand: ATORN
Shape of indexable insert ISO: D
Clearance angle of indexable insert ISO: C
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: T
Size of indexable insert ISO: 07
Thickness of indexable insert ISO: 02
Corner radius of indexable insert ISO: 04
Coating: PVD
Carbide type area ISO: M
Machining conditions for indexable insert: Medium
Carbide type ISO: M25
Carbide type: APM25T
ISO-Code Rotating: DCMT 070204
Material to be processed: Stainless steel | Steel
min./max. ap: 0.2-2.5 mm
f min./max.: 0.07-0.25 mm/U
Materials group: P (secondary application) | M (primary application)
f min.: 0,07 mm/r
max. f: 0,25 mm/r
max. ap: 2,5 mm
min. ap: 0,2 mm
Supply type: Smoothing - Positive chip breaker for low cutting depths
Chip breaker code: FM1
Min./max. Vc in steel: 130-250 m/min
Min./max. Vc in stainless steel: 100-250 m/min
Number of pieces per packet: 10 PCS

ATORN-No.: 12370794

EAN no.: 4050293729498

Product Datasheet
