Brand: ATORN
Shape of indexable insert ISO: D
Clearance angle of indexable insert ISO: C
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: T
Size of indexable insert ISO: 07
Thickness of indexable insert ISO: 02
Corner radius of indexable insert ISO: 04
Coating: CVD
Carbide type area ISO: P
Machining conditions for indexable insert: Good
Carbide type ISO: P10
Carbide type: HC7610

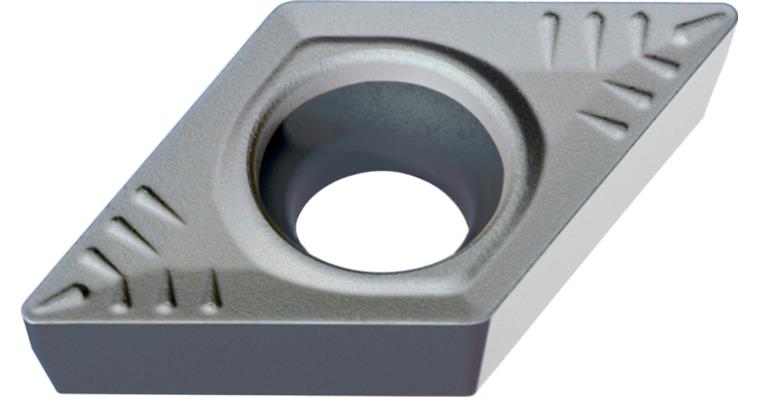

ISO-Code Rotating: DCMT 070204
Material to be processed: Steel | Cast metal
min./max. ap: 0.4-2 mm
f min./max.: 0.12-0.2 mm/U
Materials group: P (primary application) | K (secondary application)
f min.: 0,12 mm/r
max. f: 0,2 mm/r
max. ap: 2 mm
min. ap: 0,4 mm
Supply type: Medium processing - Universal geometry with wide service range
Chip breaker code: MP
Min./max. Vc in steel: 160-380 m/min
Min./max. Vc in cast iron: 140-280 m/min
Number of pieces per packet: 10 PCS

ATORN-No.: 10870553

EAN no.: 4050293351330
