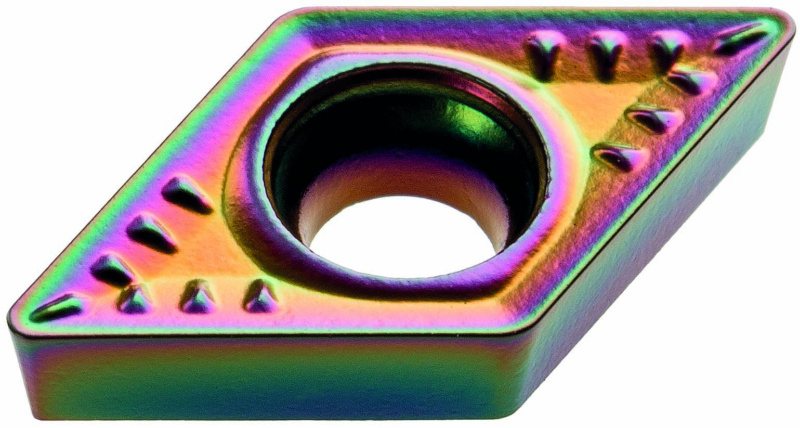

ATORN cemented carbide indexable insert DCGT 11T302-MN5 AWN15T

ATORN cemented carbide indexable insert DCGT 11T302-MN5 AWN15T

ATORN cemented carbide indexable insert DCGT 11T302-MN5 AWN15T
Item no: 1019406 105

Online price:

Available for immediate delivery

Application
For longitudinal turning and copy turning with a wide infeed range in favourable cutting conditions

Advantage
  • Very high level of hardness and wear resistance, for high service life requirements with favourable cutting conditions
  • Positive soft-cutting chip geometry with a wide infeed range and stable blades


Brand: ATORN
Shape of indexable insert ISO: D
Clearance angle of indexable insert ISO: C
Tolerance class of indexable insert ISO: G
Indexable insert type ISO: T
Size of indexable insert ISO: 11
Thickness of indexable insert ISO: T3
Corner radius of indexable insert ISO: 02
Carbide type area ISO: N
Machining conditions for indexable insert: Good
Carbide type ISO: N15
Carbide type: AWN15T
ISO-Code Rotating: DCGT 11T302
Material to be processed: Non-ferrous metal | Cast metal | Special alloy
min./max. ap: 0.1-4.5 mm
f min./max.: 0.1-0.5 mm/U
Materials group: N (primary application) | K (secondary application) | S (secondary application)
f min.: 0,1 mm/r
max. f: 0,5 mm/r
max. ap: 4,5 mm
min. ap: 0,1 mm
Supply type: Medium processing - Universal geometry with wide service range
Chip breaker code: MN5
Min./max. Vc in cast iron: 120-200 m/min
Min./max. Vc in non-ferrous metals: 200-950 m/min
Min./max. Vc in special alloys: 20-50 m/min
Number of pieces per packet: 10 PCS

ATORN-No.: 12370150

EAN no.: 4050293565638

Product Datasheet
