Brand: ATORN
Shape of indexable insert ISO: C
Clearance angle of indexable insert ISO: C
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: X
Size of indexable insert ISO: 09
Thickness of indexable insert ISO: T3
Corner radius of indexable insert ISO: 04
Coating: CVD
Carbide type area ISO: M
Machining conditions for indexable insert: Unfavourable
Carbide type ISO: M35
Carbide type: APM35T

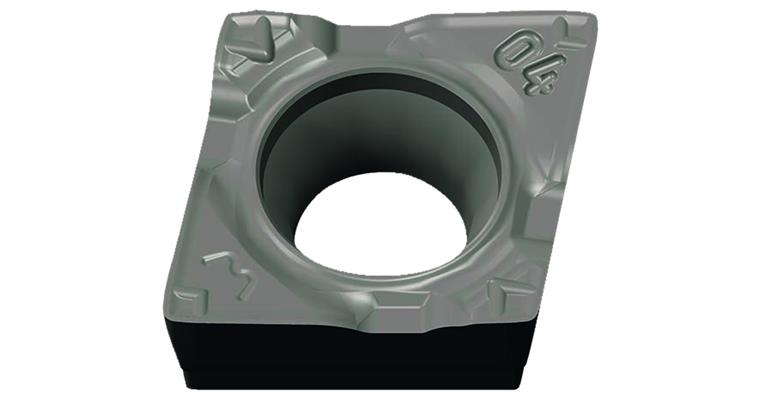

ISO-Code Rotating: CCMX 09T304
Material to be processed: Steel | Stainless steel
min./max. ap: 0.3-3.0 mm
f min./max.: 0.05-0.4 mm/U
Materials group: M (primary application) | P (secondary application)
f min.: 0,05 mm/r
max. f: 0,4 mm/r
max. ap: 3,0 mm
min. ap: 0,3 mm
Supply type: Smoothing
Chip breaker code: FP2
Min./max. Vc in steel: 90-200 m/min
Min./max. Vc in stainless steel: 170-240 m/min
Number of pieces per packet: 10 PCS

ATORN-No.: 12370778

EAN no.: 4050293729337
