Brand: ATORN
Machining conditions for indexable insert: Medium
Shape of indexable insert ISO: C
Clearance angle of indexable insert ISO: N
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: G
Size of indexable insert ISO: 09
Thickness of indexable insert ISO: 03
Corner radius of indexable insert ISO: 08
Coating: PVD
Carbide type area ISO: M
Carbide type ISO: M25
Carbide type: APM25T

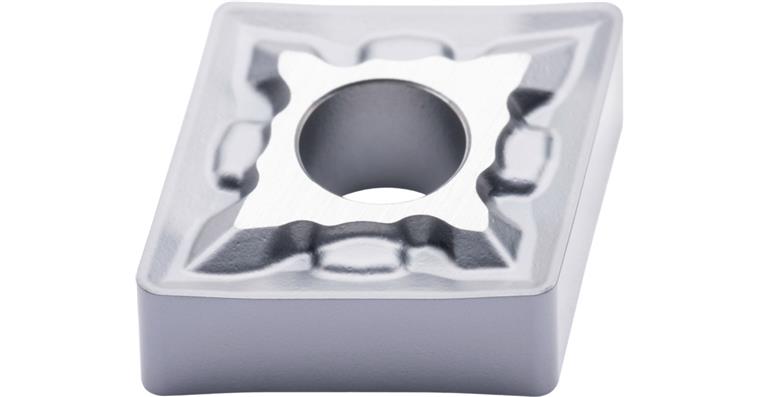

ISO-Code Rotating: CNMG 090308
Material to be processed: Stainless steel | Steel | Special alloy
min./max. ap: 0.5-4.0 mm
f min./max.: 0.25-0.5 mm/U
Materials group: M (primary application) | P (secondary application) | S (secondary application)
f min.: 0,25 mm/r
max. f: 0,5 mm/r
max. ap: 4,0 mm
min. ap: 0,5 mm
Supply type: Medium processing - Universal geometry with wide service range
Chip breaker code: MM5
Min./max. Vc in steel: 60-250 m/min
Min./max. Vc in stainless steel: 40-250 m/min
Min./max. Vc in special alloys: 20-80 m/min
Number of pieces per packet: 10 PCS

ATORN-No.: 12370063

EAN no.: 4050293564761
